Command Center Large Screen Bracket

Command center large screen bracket is a modular floor-standing support system for large LED display installation. It consists of high-strength steel frame, load-bearing base, connectors, adjustment system and equipment storage structure, enabling stable, safe, precise and high-flatness installation of LED displays.

Adopting full screw assembly without on-site welding and painting, it supports fast installation, disassembly, transportation and on-site leveling. It is widely used in command centers, monitoring centers, dispatch halls, data centers, security control rooms, smart city management centers, emergency command halls and other large commercial and government display projects.

Core Features

1. Independent load-bearing structure with its own base to support the display weight.

2. High stability with weighted base or anti-tipping design for public and commercial environments.

3. Flexible installation, detachable or semi-fixed for temporary events, exhibitions and shopping mall displays.

4. High compatibility for LED displays of different sizes and specifications.

5. Adjustability: some models support height and front-rear adjustment.

Product Advantages

Common Types

•Fixed floor stand: for long-term installation with priority stability

•Fixed curved bracket: for large screens spliced by multiple LED die-cast aluminum cabinets

Product Parameters

Problems Solved

Core Functions & Technical Advantages

The command center large screen bracket is a floor-standing kit connected entirely by screws. Each section is no more than 2200mm, allowing elevator transportation on any floor. It adopts anti-corrosion electrostatic spraying, enabling clean, paint-free and welding-free on-site construction. It can be customized for magnetic modules, die-cast aluminum cabinets and on-site installation conditions. The lower part is equipped with a lockable door for video control equipment, forming a free-standing display without damaging decoration. The color can match the site for an integrated and aesthetic look.

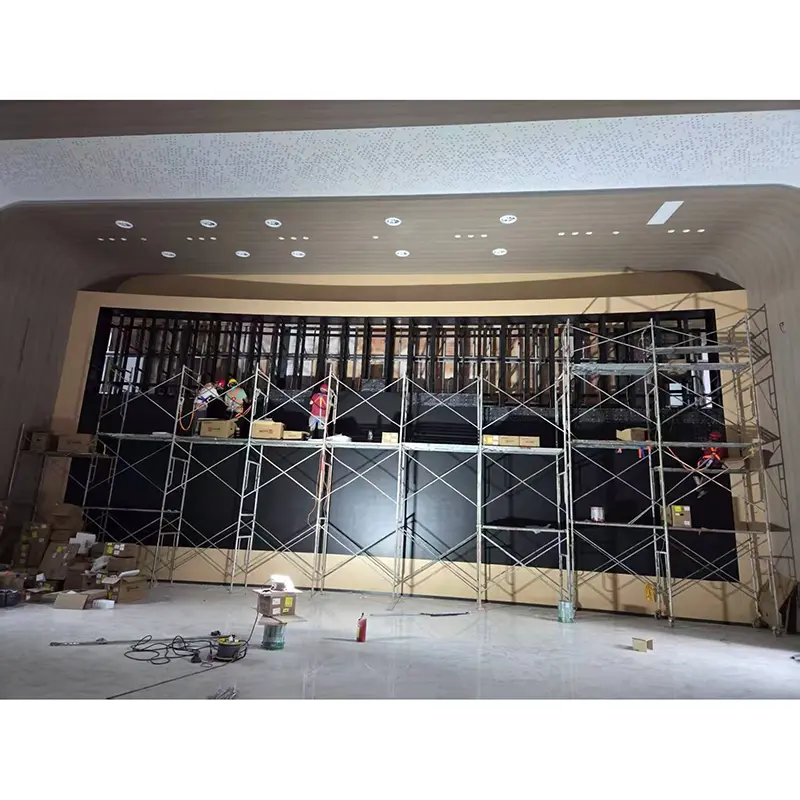

Installation Method

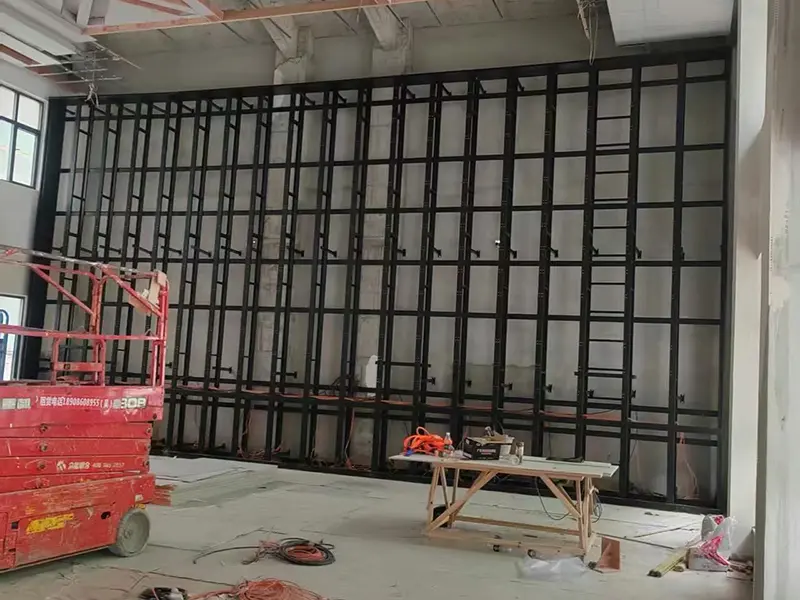

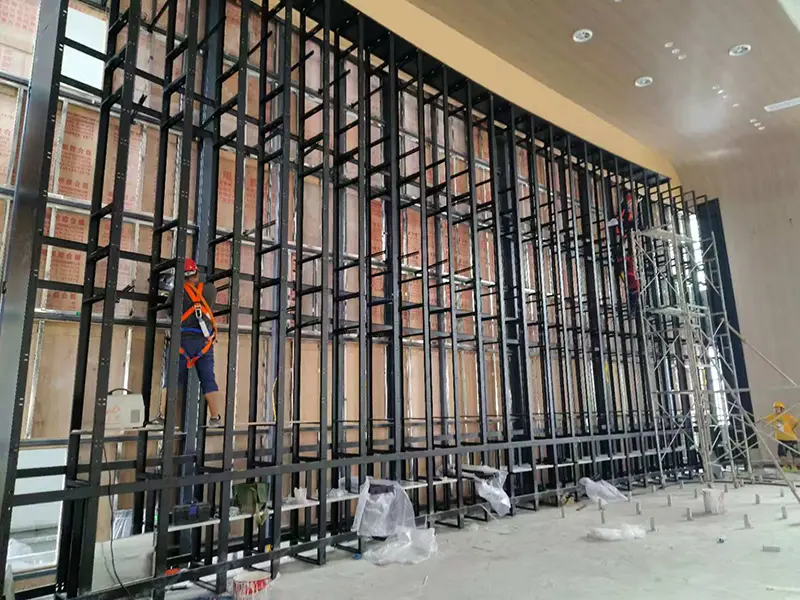

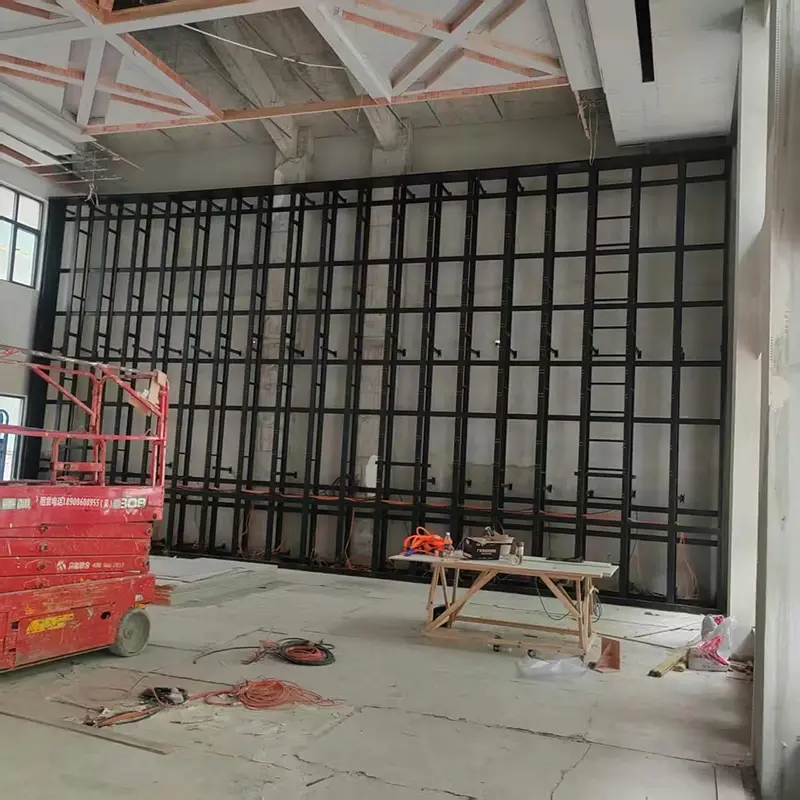

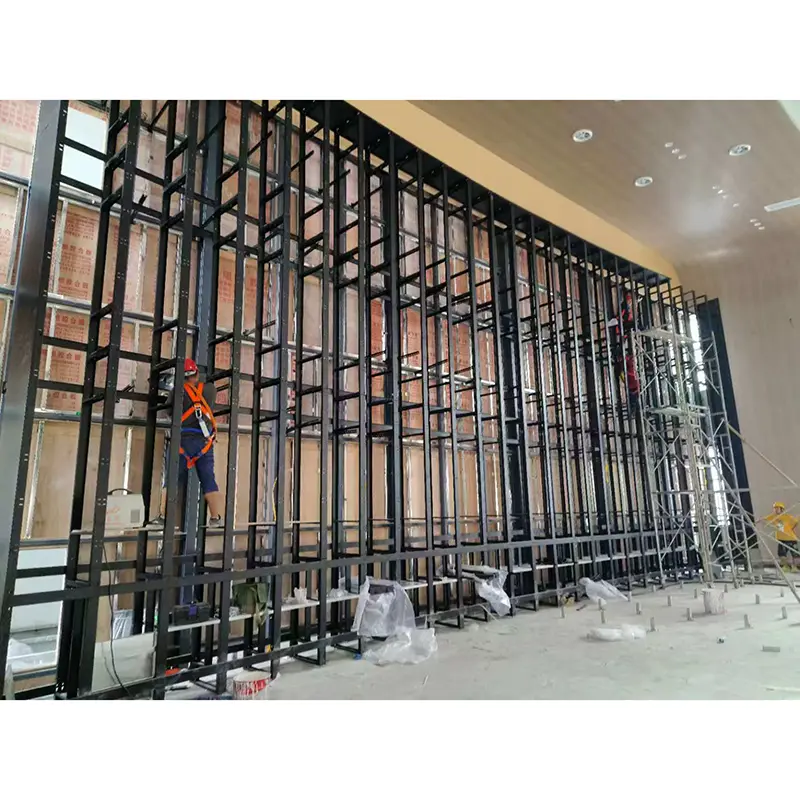

The floor stand is installed in upper and lower sections. The lower section is equipped with M16 nuts for level adjustment with an adjustable stroke of 35mm. The upper section is screwed to the lower section and can be adjusted and fixed according to the thickness of the display module or die-cast aluminum cabinet. The back of the upper section is equipped with adjustable wall brackets fixed by expansion screws or wood fasteners, effectively ensuring balance, verticality and perfect screen fit.

Application Scenarios

It can be customized for LED magnetic modules and die-cast aluminum cabinets of various specifications. Designs include flat, curved, circular and special-shaped with unlimited width and height up to 10 meters, suitable for command center scenarios.

Material & Technology

Steel plates: 1.0/1.2/1.5/2.5mm carbon steel from Baosteel, with quality certificates including chemical composition, mechanical properties, yield strength, tensile strength, elongation, impact, hardness and testing reports.

Process: laser cutting, bending, laser welding, polishing, customized color electrostatic spraying. Spraying process: degreasing, washing, conditioning, phosphating, pure water washing, drying, electrostatic powder spraying, high-temperature curing, cooling. The coating features good adhesion, wear resistance, impact resistance, corrosion resistance and zero VOC emissions.

Transportation

Products are wrapped with bubble film, packed in cartons and fumigation-free wooden cases for shipment.

FAQ

1. What size LED screen is this Command Center Large Screen Bracket suitable for?

It supports various LED video walls and can be customized according to project requirements, suitable for large command centers and super large LED display projects.

2. What is the load capacity?

Regular load range is about 100kg–1000g; higher load can be achieved through distributed structure design for large projects.

3. Is customization supported?

Yes, OEM & ODM customization is supported, including size, structure design, curved solution, surface color, frame decoration and Logo customization.

4. Is on-site welding required for installation?

No. The product adopts full screw assembly without on-site welding, painting or cutting.

5. Is it suitable for curved LED displays?

Yes. Customization is available: flat, inner curved, outer curved and special-shaped structures.

6. Is later maintenance convenient?

Yes. The bracket is equipped with lockable access door and hidden equipment compartment for easy equipment maintenance and cable management.

7. Is export transportation supported?

Yes. The product adopts KD detachable packaging to effectively reduce transportation volume and logistics cost.
