LED Electronic Screen Floor Stand with Access Door

LED Electronic Screen Floor Stand with Access Door is a support system composed of metal frame (usually carbon steel), base, connectors and adjustment components. It is used to fix LED displays on the ground stably, safely and adjustably, suitable for various indoor and outdoor display scenarios.

What Problems Does It Solve?

LED Electronic Screen Floor Stand with Access Door is not only an ordinary display installation structure, but also an integrated solution for LED displays featuring installation, concealment, protection, maintenance and aesthetics, effectively solving multiple pain points of traditional LED stands in engineering and daily use.

Core Features

1. Independent load-bearing structure

With its own base, supporting the display weight independently.

2. High stability

Equipped with weighted base or anti-tipping design, suitable for public and commercial areas.

3. Flexible installation

Detachable or semi-fixed, ideal for temporary events, exhibitions and mall displays.

4. High compatibility

Supports installation and splicing of LED displays in various sizes and specifications.

5. Adjustability

Some models support height and front-rear adjustment.

Common Types

•Fixed floor stand: for long-term installation, priority on stability

•Movable floor stand: with casters for easy movement

•Video wall stand: for multi-module large screens

•Rental stand: modular design for easy disassembly and transport

Product Parameters

Core Functions & Technical Advantages

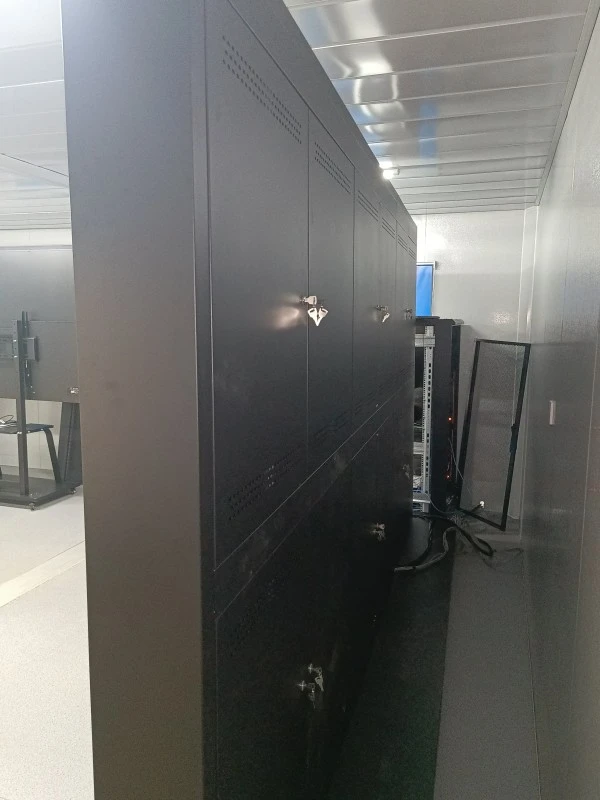

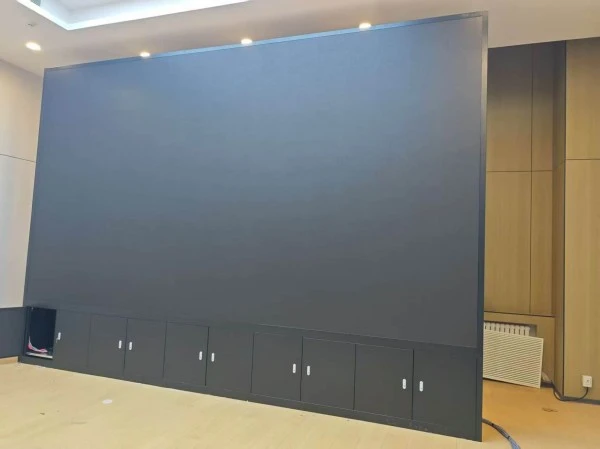

LED Electronic Screen Floor Stand with Access Door is a floor-type kit connected entirely by screws. Each section is≤2200mm, allowing elevator transportation on any floor. It adopts anti-corrosion electrostatic spraying, enabling clean, paint-free and welding-free on-site installation. Customizable for magnetic module installation, die-cast aluminum cabinets and on-site conditions. The lower part has a lockable door for video control equipment. It forms a free-standing display without damaging decoration, with color matching the site for integrated aesthetics.

Installation Method

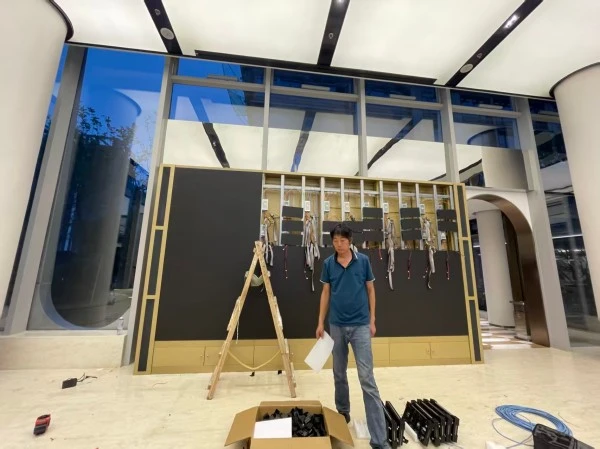

The floor stand is installed in upper and lower sections. The lower section is equipped with M16 nuts for level adjustment (adjustable travel: 35mm). The upper section is screwed to the lower section, adjustable and fixed according to display module or cabinet thickness. The back of the upper section has adjustable wall brackets fixed by expansion screws or wood fasteners, ensuring balance, verticality and perfect screen fit.

Application Scenarios

Customizable for LED magnetic modules and die-cast aluminum cabinets in various sizes. Designs include flat, curved, circular and special shapes, with unlimited width and height up to 10m. Suitable for: hotels, shopping malls, schools, lobbies, conference rooms, lecture halls, exhibition halls, stadiums, subway, airport, high-speed rail stations, monitoring rooms and command centers.

Material & Technology

Steel sheets: 1.0/1.2/1.5/2.5mm carbon steel from Baosteel, with certified chemical composition, mechanical properties, yield strength, tensile strength, elongation, impact, hardness and test reports.

Process: laser cutting, bending, laser welding, polishing, electrostatic powder coating. Coating process: degreasing, washing, conditioning, phosphating, pure water washing, drying, electrostatic powder spraying, high-temperature curing, cooling. Strong adhesion, wear-resistant, impact-resistant, corrosion-resistant, VOC-free.

Why Choose Shushi?

•10+ years of LED support structure manufacturing experience

•Modular KD structure for easy transportation

•Supports OEM & ODM customization

•Strong load-bearing steel structure

•Fast welding-free installation

•Professional export packaging

Transportation

Bubble wrap, carton box, fumigation-free wooden box packaging.

FAQ

1. What screen sizes does this stand fit?

Supports various LED displays, from small to large video walls. Customizable to your screen size.

2. What is the load capacity?

Range: 100kg–1000kg depending on model. Reinforced or customized solutions for large screens.

3. Is customization available?

Yes, OEM/ODM supported:

•Size and structure design

•Material (steel/stainless steel/aluminum alloy)

•Color and surface treatment

•Brand Logo

4. Is installation complicated?

No. Modular design with clear instructions and video. Installable by ordinary technicians, saving time and labor.

5. Is the stand movable?

Some models have casters with brakes, flexible for exhibitions and events.

6. Is it safe and stable?

Reinforced structure, stable base, load-tested. Anti-tipping and reinforcement options for large screens.

7. Can it be used outdoors?

No, for indoor use only.

8. Is packaging and transportation convenient?

KD disassembly package, small volume, easy for export and transport, low logistics cost.
