LED Display Curved Bracket

LED display curved bracket is a support system composed of metal frame (usually carbon steel), base, connectors and adjustment components. It fixes LED displays on the ground stably, safely and adjustably, suitable for various indoor and outdoor display scenarios.

What is LED Display Curved Bracket?

Curved bracket is a custom-designed steel or aluminum installation system based on the curvature radius of LED panels, enabling:

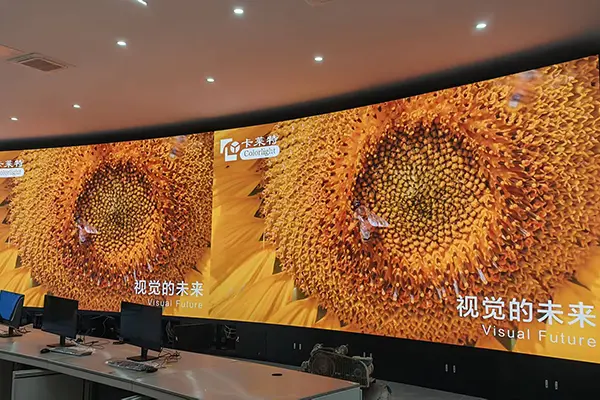

•Concave Curved LED Screen installation

•Convex Curved LED Screen installation

•Cylinder LED Display installation

•Wave LED Display installation

•Circular LED Display installation

Compared with traditional flat brackets, curved brackets emphasize:

•Curvature accuracy

•Uniform load bearing

•Module splicing flatness

•Visual continuity

Core Features

1. Independent Load-Bearing Structure

With its own base, it can bear the weight of the display through self-weight structure without additional support.

2. High Stability

Equipped with weighted base or anti-tipping design, suitable for public or commercial environments.

3. Flexible Installation

Detachable or semi-fixed, ideal for temporary events, exhibitions, shopping mall displays, etc.

4. High Compatibility

Supports installation of LED displays of different sizes and specifications, either single or spliced.

5. Adjustability

Some models support height and front-rear adjustment.

Common Types

•Fixed Floor Stand: for long-term installation, priority on stability

•Mobile Floor Stand: with casters for easy movement

•Splicing Screen Bracket: for multi-module large screens

•Rental Bracket: modular design for easy disassembly and transportation

Product Parameters

Core Functions & Technical Advantages

LED display floor stand is composed of floor-standing loose parts, fully connected by screws. Each section is no longer than 2200mm, elevator transportable on all floors. With anti-corrosion electrostatic spraying, it can be installed on-site after cleaning, achieving paint-free, welding-free and fast construction.

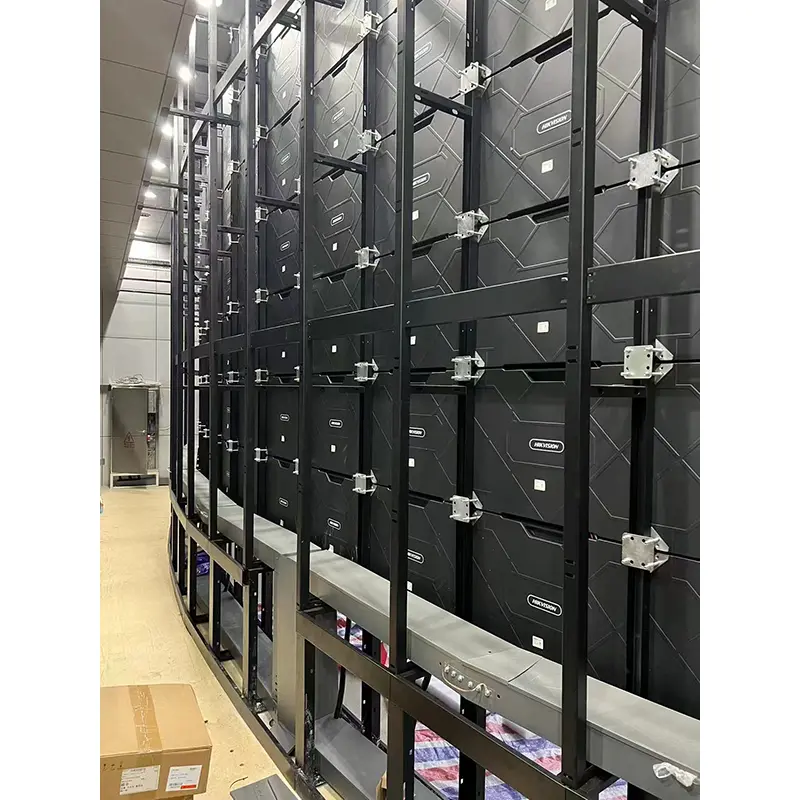

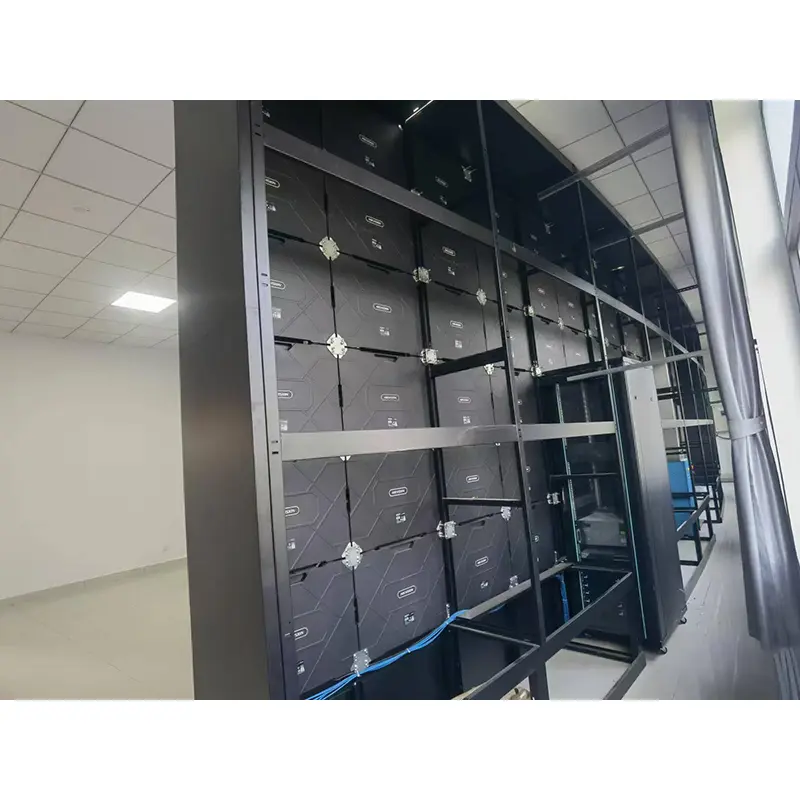

Customized for magnetic module installation or die-cast aluminum cabinet installation of various specifications, the bracket is equipped with a lockable door at the bottom for storing video control equipment and others. Curvature can be customized freely without damaging decoration, forming an independent display. Color matches on-site decoration for integrated aesthetic effect.

Installation Method

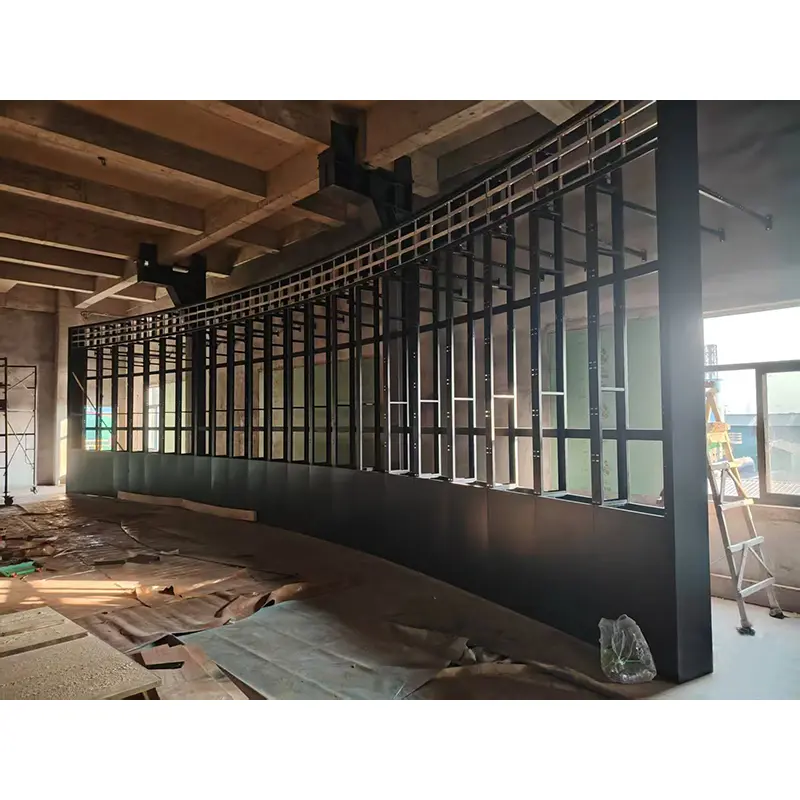

LED display floor stand adopts upper-lower structure for floor installation. The lower part is equipped with M16 nuts for on-site level adjustment with 35mm travel. The upper and lower parts are connected by screws, adjustable and fixed according to the thickness of display modules or die-cast aluminum cabinets.

The back of the upper structure is equipped with adjustable wall mounting seats, fixed with expansion screws or wood screws, effectively achieving balance, verticality and screen fitting.

Application Scenarios

Customizable installation for LED display magnetic modules and die-cast aluminum cabinets of various specifications. Designs include concave, convex, special-shaped and wave curves with unlimited width and height up to 10 meters.

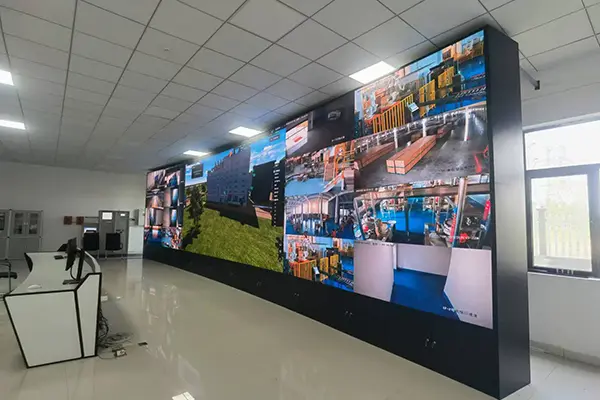

Widely used in hotels, shopping malls, schools, lobbies, meeting rooms, lecture halls, exhibition halls, stadiums, subway stations, airports, high-speed rail stations, monitoring rooms and command centers.

Materials & Crafts

Steel sheets are purchased from Baosteel: 1.0, 1.2, 1.5, 2.5 carbon steel, with quality certificates covering chemical composition, mechanical properties, yield strength, tensile strength, elongation, impact, hardness and testing results.

Process: laser cutting, bending, laser welding, polishing, electrostatic spraying in custom colors. Spraying process: degreasing, water washing, surface conditioning, phosphating, pure water cleaning, drying, electrostatic powder coating, high-temperature curing, cooling. Coating features good adhesion, wear resistance, impact resistance, corrosion resistance and zero VOC emissions.

Packaging & Transportation

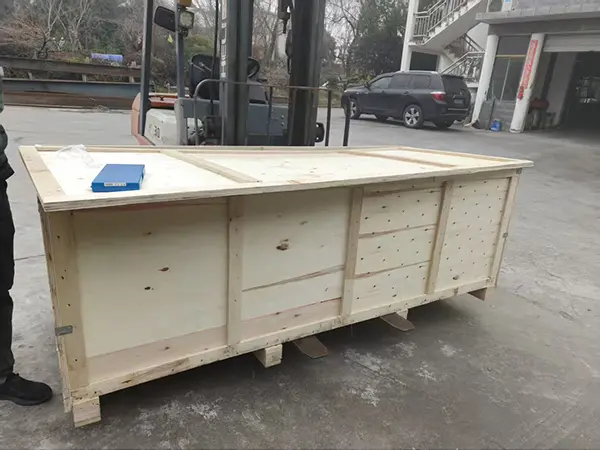

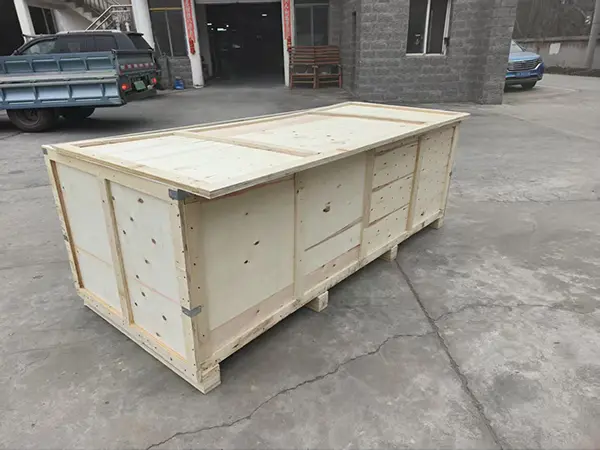

Bubble wrap, carton packaging, fumigation-free wooden cases for shipping.

FAQ

1. What screen sizes are compatible?

Supports various LED displays from standard to large splicing walls. Customizable according to panel dimensions.

2. What is the load capacity?

100kg–1000kg for standard models. Reinforced or customized solutions are available for larger display systems.

3. Is customization available?

OEM/ODM supported: dimension & structure, material (steel/stainless steel/aluminum alloy), color & surface treatment, logo.

4. Is installation complicated?

No. Modular design with clear instructions and video guidance. Installable by standard technicians, saving time and labor.

5. Is it movable?

Select models are equipped with lockable casters, making them flexible for exhibitions and events.

6. Is it safe and stable?

Reinforced structure, stable base, load-tested design with anti-tipping support for large panels.

7. Can it be used outdoors?

Outdoor versions are available with rust-proof, anti-corrosion, and wind-resistant design.

8. Is packaging and transportation convenient?

KD (knocked-down) structure ensures compact packaging, easy transport, and reduced logistics cost for export.

9. Do you offer curved display solutions?

Yes. Shushi provides LED Display Curved Bracket solutions designed for seamless curved screen installation, ensuring precise alignment and stable support for creative display projects.
