Floor Stand for LED Display

Floor Stand for LED Display is a supporting system composed of metal frame (usually carbon steel), base, connectors and adjustment components. It fixes LED displays on the ground stably, safely and adjustably, suitable for various indoor and outdoor display scenarios.

Core Features

1. Independent load-bearing structure

With its own base, it bears the weight of the display by its own structure.

2. High stability

Usually equipped with weighted base or anti-tipping design, suitable for public or commercial environments.

3. Flexible installation

Detachable or semi-fixed, suitable for temporary events, exhibitions, shopping mall displays, etc.

4. High compatibility

Supports the installation of single or spliced LED displays of different sizes and specifications.

5. Adjustability

Some supports support height adjustment and front-rear adjustment.

Common Types

• Fixed Floor Stand: for long-term installation, priority on stability

• Mobile Floor Stand: with universal wheels, easy to move

• Video Wall Stand: for multi-module LED large screens

• Rental Stand: modular design, easy to disassemble and transport

Product Parameters

Core Functions & Technical Advantages

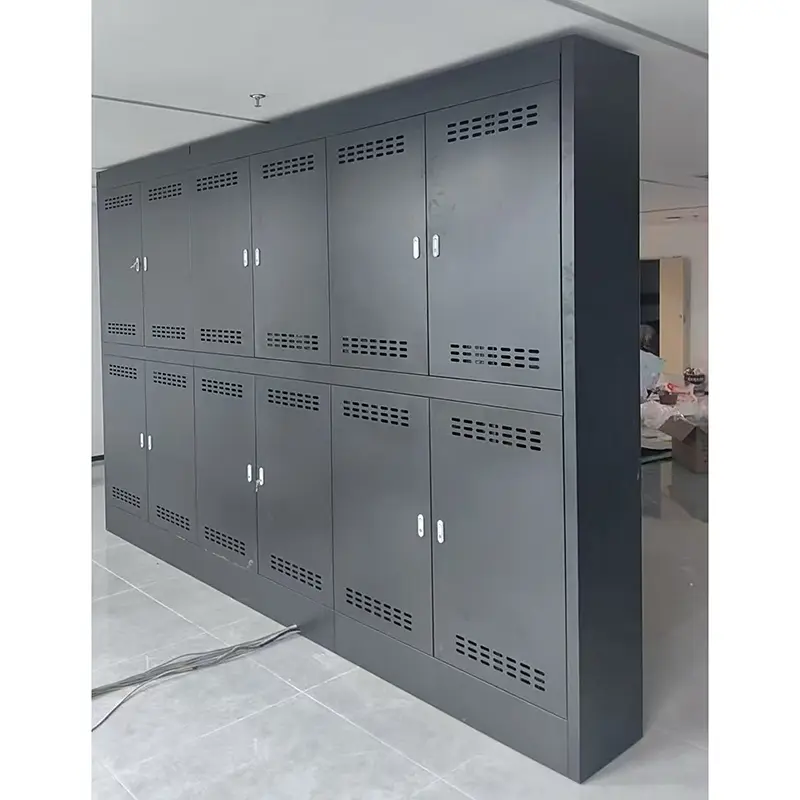

Floor Stand for LED Display is assembled by floor-standing parts with full screw connection. Each section is no more than 2200mm, which can be transported by elevator on any floor. The product adopts anti-corrosion electrostatic spraying process, which can be constructed after cleaning at the installation site, realizing paint-free, welding-free and quick on-site construction. It can be customized according to magnetic suction installation or die-cast aluminum cabinet installation and site conditions. The lower part of the stand is equipped with a lockable door, which can store video control equipment and other devices. It does not damage the interior decoration and forms an independently placed display. The color can match the site decoration to achieve an integrated and beautiful effect.

Installation Method

The stand is divided into upper and lower structures for floor installation. The bottom of the lower structure is equipped with M16 nuts, which can adjust the level on site with an adjustable stroke of 35mm. The bottom of the upper structure is connected with the lower structure by screws, which can be adjusted and fixed according to the thickness of the display module or die-cast aluminum cabinet. The back of the upper structure is equipped with an adjustable wall mount, fixed by expansion screws or wood screws, effectively achieving balance, verticality and perfect screen fitting.

Applications

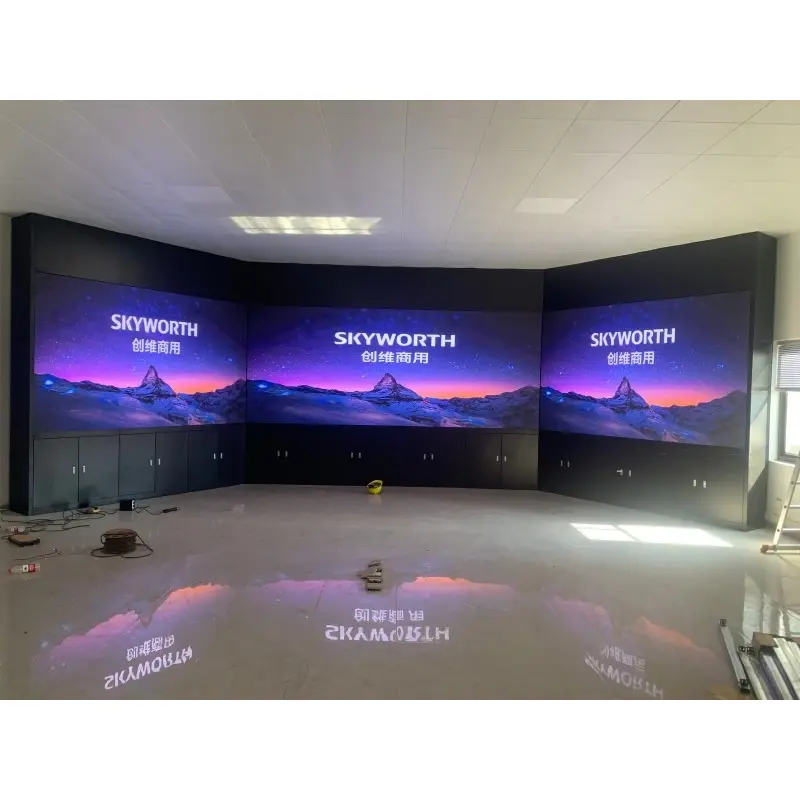

The product can customize installation methods according to various LED display magnetic modules and die-cast aluminum cabinets. It can be designed into flat, curved, circular and special shapes with unlimited width and height up to 10 meters, suitable for hotels, shopping malls, schools, reception halls, conference rooms, auditoriums, exhibition halls, stadiums, subway stations, airports, high-speed rail stations, monitoring rooms and command centers.

Materials & Craft

The metal plates are 1.0, 1.2, 1.5, 2.5 carbon steel produced by Baosteel. Baosteel provides quality certificates including chemical composition, mechanical properties, yield strength, tensile strength, elongation, impact, hardness, flaw detection results, etc.

The metal plates are processed by laser cutting, bending, laser welding and polishing according to drawings. The stand can be customized with various colors of electrostatic spraying. The spraying process includes degreasing, water washing, surface conditioning, phosphating, pure water cleaning, drying, electrostatic powder spraying, high-temperature curing and cooling. The coating has good adhesion, wear resistance, impact resistance, corrosion resistance and no VOC emissions.

Packaging & Transportation

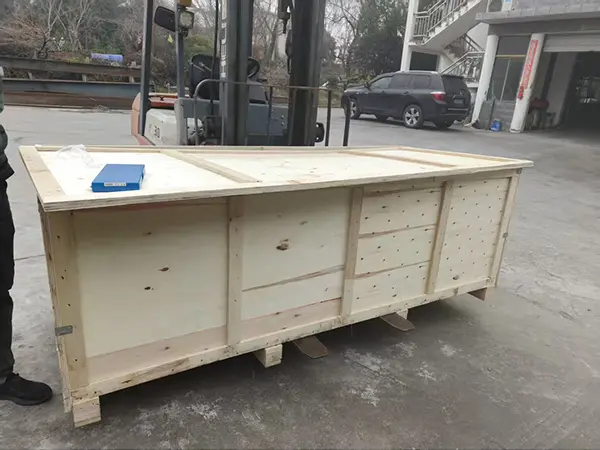

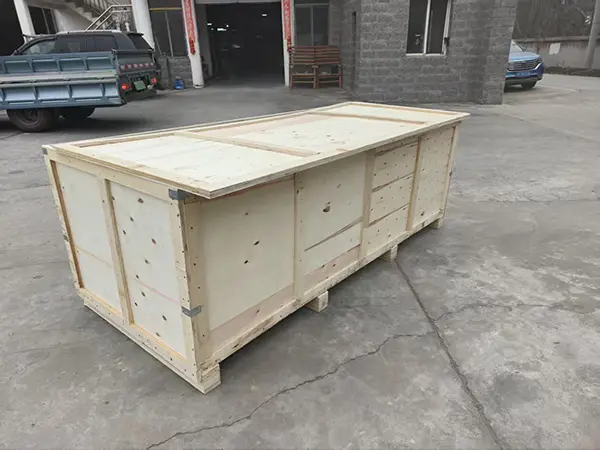

The products are packed with bubble film, carton and fumigation-free wooden cases.

FAQ

1. What size of screen is this Floor Stand for LED Display suitable for?

This product supports various specifications of LED displays, conventionally suitable for small to large video walls. The specific size can be adapted or customized according to your screen size.

2. What is the load capacity of the stand?

The load capacity varies with different models, conventionally about 100kg–1000kg. For large LED screens or video walls, reinforced or customized solutions are available.

3. Is customization supported?

OEM/ODM customization is supported, including:

• Size and structure design

• Material (steel/stainless steel/aluminum alloy)

• Color and surface treatment

• Brand Logo

4. Is installation complicated?

No. The product adopts modular design with clear structure, equipped with installation instructions and videos, which can be installed by ordinary technicians, saving time and labor cost.

5. Is the stand movable?

Some models are equipped with universal wheels for movement, with brakes, suitable for flexible use in exhibitions, events and other scenarios.

6. Is it safe and stable to use?

The stand adopts thickened structure, stable base and has passed load-bearing tests. For large screens, anti-tipping or reinforcement solutions are available to ensure safe use.

7. Can it be used outdoors?

Outdoor version is available with anti-rust and anti-corrosion treatment, and enhanced wind resistance design can be provided according to requirements, suitable for outdoor advertising or events.

8. Is transportation and packaging convenient?

The product supports KD detachable packaging with small size, convenient for transportation and export, effectively reducing logistics costs.
