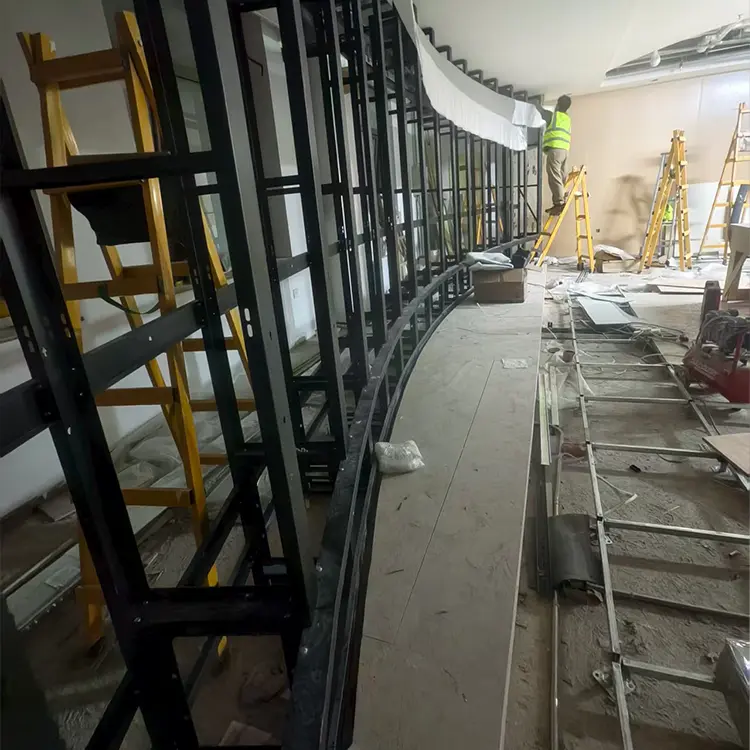

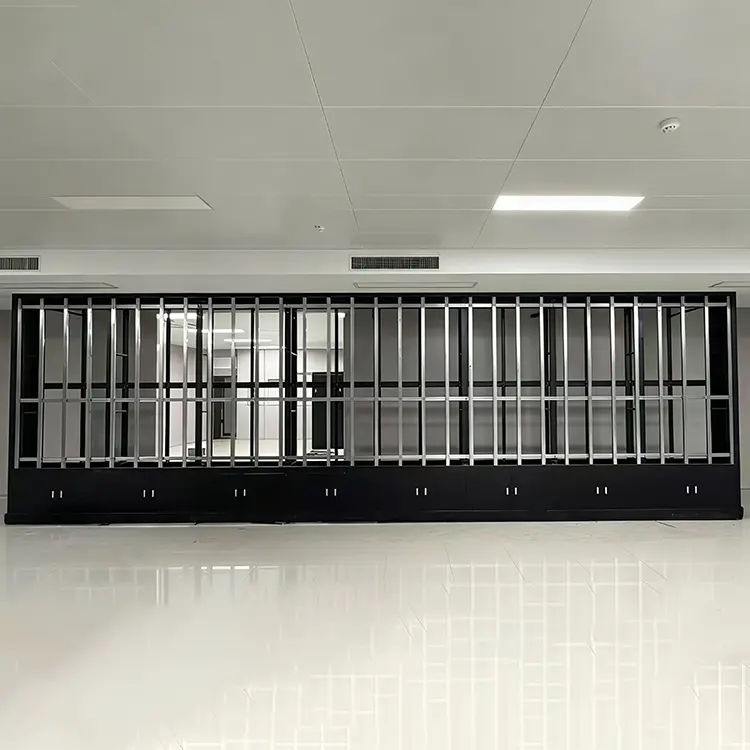

LED Display Welding-free Bracket

LED display welding-free bracket is a support system composed of modular metal pipes, connecting corners, positioning beams, keels and screw fastening components. It fixes LED displays on walls or floor-standing structures by full screw assembly with no on-site welding required.

Traditional Welding VS Weld-Free Structure

Core Features

1. Easy Installation

Fixed with quick-install clips and screws; single person can finish single module installation, saving over 60% working hours compared with traditional welding.

2. Structural Stability

Adopts high-strength aluminum profile (6063-T5) with load capacity up to 50kg/m²; passes 1000-hour salt spray test, suitable for harsh outdoor environments.

3. Flexible Maintenance

Supports independent disassembly of single module without removing the whole screen, reducing later maintenance cost.

4. High Compatibility

Compatible with mainstream LED modules (P2.5/P3/P4/P5, etc.);±5°angle fine-tuning available via adjusting holes.

Product Advantages

Fully assembled with screws; operable by ordinary workers after simple training. No hot work, professional welders or on-site cutting needed; reusable for multiple times. Various sizes can be customized by adjusting the length and quantity of frames, keels and positioning beams.

Installation Method

1. Wall Preparation: Drill holes according to drawings and install expansion bolts.

2. Main Frame Assembly: Fix horizontal and vertical keels with corner connectors.

3. Module Installation: Insert LED modules into clips and tighten fixing screws.

4. Calibration & Leveling: Adjust flatness with a level and fine-tune angles with adjusting screws.

5. Cable Management: Arrange signal and power cables with integrated cable ducts.

Application Scenarios

•Indoor Commercial Display: Shopping mall advertising screens, conference displays

•Outdoor Public Facilities: Traffic guidance screens, stadium screens

•Rental & Performance: Temporary stage background screens

•Special Environments: Vehicle-mounted displays, special-shaped screens

FAQ

1. Is the LED Display Welding-free Bracket enough with only screws?

Although welding-free, our bracket uses triangular mechanical support. The main keel is made of 2.0mm thick Q235B cold-rolled steel, thicker than most welding brackets (1.2–1.5mm) on the market.

2. What is the maximum load and screen area?

Designed load is about 150kg, suitable for small to large video walls. Customizable to your screen size.

3. Can the bracket adjust for uneven floors/walls?

Yes. The base is equipped with adjustable feet; each leg can lift independently. Just use a level to center the bubble for easy leveling.

4. Is installation complicated?

No. Installable by ordinary workers. Each set includes a detailed installation manual. All parts are modular.

5. Is customization supported?

Yes. We provide professional customization. Please offer specific dimensions; color and material can be customized as requested.

6. Can this welding-free LED bracket be reused?

Yes. The modular structure supports repeated assembly and disassembly.

7. Are professional welders required?

No. The structure is assembled only with screws.
