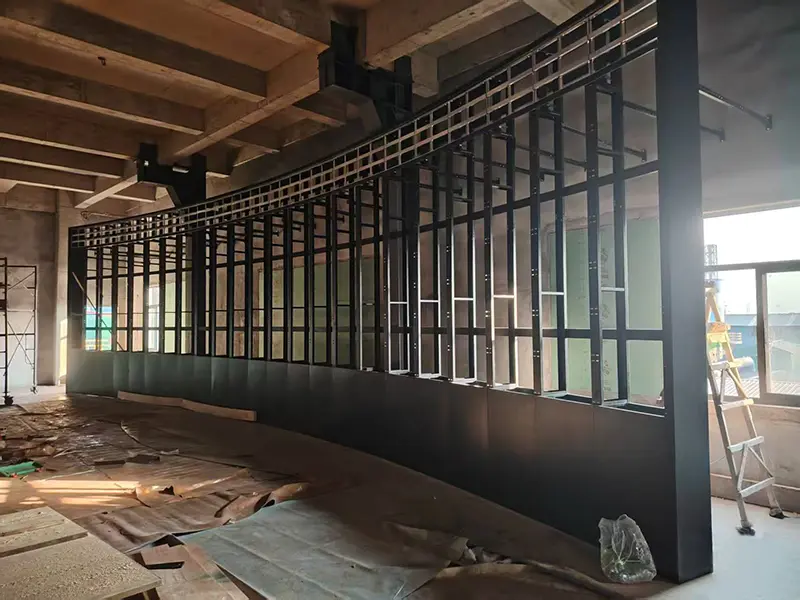

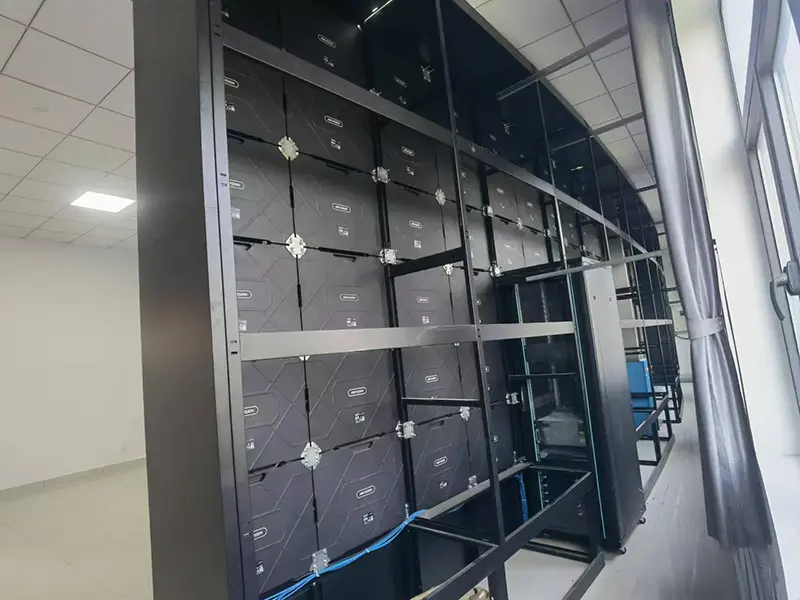

Curved LED Screen Mobile Cabinet

The curved LED screen mobile cabinet is an integrated transportation and mounting system specially designed for curved LED display screens or curved LCD splicing screens, widely used in temporary events such as stage rental, auto show tours, brand pop-up stores and outdoor music festivals. Unlike standard flat screen brackets, curved screens require precise control of arc radii during splicing, with numerous panels and frequent assembly & disassembly, which impose strict requirements on cabinet load capacity, positioning, protection and rapid setup performance.

This product features a high-strength aluminum alloy frame and modular curved connectors. Each cabinet integrates curved positioning latches, quick spring pins and moving casters, realizing the concept of "cabinet as structure, one cabinet for one screen, ready-to-assemble upon splicing".

Why Rental Companies Need Curved Screen Mobile Cabinets

Product Advantages

1. 3×Higher Assembly Efficiency–Multiple Events Per Day

Traditional process:

Truss setup (1.5h)→Screen hanging (1h)→Arc adjustment (1h)→Wiring (0.5h)→Commissioning (0.5h) = Total 4.5h

Cabinet process:

Cabinet splicing (0.5h)→Screen embedding (0.5h)→Fastener locking & wiring (0.5h) = Total 1.5h

Saves 3 hours per event, enabling setup & teardown for 2–3 events daily and higher equipment turnover.

2. Over 50% Lower Transportation Cost–2–3 Times More Screens Per Truck

Each cabinet is a regular rectangle for tight stacking. Compared with scattered traditional solutions (separate screens, trusses and cables):

3. On-site Adjustable Arc–Multi-scene Compatibility

The cabinet supports on-site arc adjustment for diverse shapes:

•Flat wall (0°arc)

•Curved wall (adjustable radius R2–R10)

•S-shaped double curved surface

•Circular / semi-circular wrap-around screen

•Wave-shaped creative modeling

Applicable scenarios: auto shows (custom arcs for different car models), concerts (custom stage designs), press conferences (brand-exclusive curves).

4. Operable by 2–3 Workers–Less Labor Dependence

Traditional curved screen setup requires forklift/scaffold operators, truss assemblers, screen hangers and wiring engineers.

This cabinet features silent bottom universal casters for easy flat-ground movement and tool-free quick pin connections between cabinets. Only 2–3 workers can complete full curved wall assembly and dismantling.

5. Full-surround Protection–80% Drop in Screen Damage Rate

Hidden major cost for rental firms: dented screen edges and damaged modules.

The cabinet wraps the screen on five sides (display surface exposed only) with no protruding edges during transport. LED modules can be repaired inside cabinets without disassembly. Optional anti-collision corner bumpers are available.

Test data: Annual damage rate drops from ~15% (traditional) to below 3%.

6. Compatible with Mainstream Rental Screens

Pre-drilled holes fit most commercial rental LED screens:

Standard P2.6/P3.9/P4.8/P5.9 rental panels; 500×500mm / 500×1000mm standard cabinets; curved LCD splicing screens (customizable per curvature radius).

OEM customization: Cutouts and clamping positions can be tailored to client screen specifications.

Material & Structural Parameters

Installation Steps

Operated by 2–3 workers; a 20㎡curved screen takes around 1.5 hours to install

1. Site Preparation

Clean and level the ground, unpack and count cabinets, connectors and casters to check completeness.

2. Cabinet Splicing

Splice cabinets sequentially per designed arc, align curved positioning notches, insert quick pins and tighten connecting screws. Position latches automatically align arcs without repeated measurement.

3. Caster Installation

Flip cabinets, mount 4 silent casters per unit, lock fasteners, test smooth movement and engage brakes to confirm stable locking.

4. Screen Embedding

Use suction cups or two-person lifting to align curved screens with internal positioning slots and lower fully into place.

5. Lock & Secure

Tighten screen fasteners around all sides, check screen adhesion for regular curves, no looseness or gaps.

6. Cable Management

Route power and signal cables neatly through pre-set wiring troughs away from heat dissipation zones. Side cable holes allow inter-cabinet wiring to pass through directly.

7. Final Position & Lock

Push cabinets to designated display positions and engage all caster brakes to prevent sliding.

8. Power On & Commissioning

Power on to test screen display, inspect structural stability and ventilation, then deploy once debugging passes.

Applicable Scenarios

Full Comparison with Traditional Truss Solutions

FAQ

Q1: Can curved LED screen mobile cabinets fit curved screens of different radii?

A: Compatible with standard commercial curved display screens; internal clamping sizes can be customized for special specifications.

Q2: Will long-term closed use affect equipment heat dissipation?

A: Multiple ventilation slots are reserved for smooth air circulation to avoid overheating failures.

Q3: Will screens shift or bump during movement?

A: Robust internal limiting fixing structure and full cabinet wrapping prevent screen damage during relocation.

Q4: Is the cabinet heavy? Can one person move it?

A: Smooth casters enable single-person movement and positioning for standard sizes.

Quick Selection Reference
