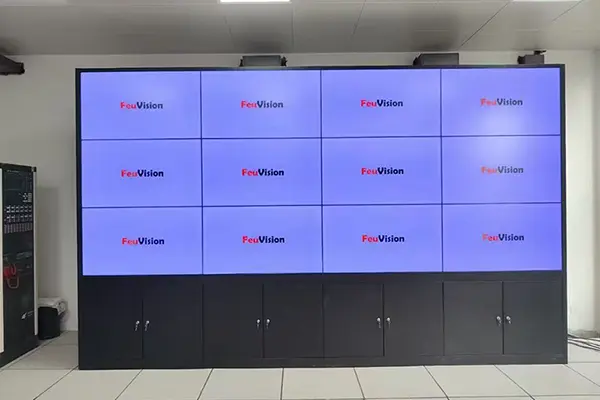

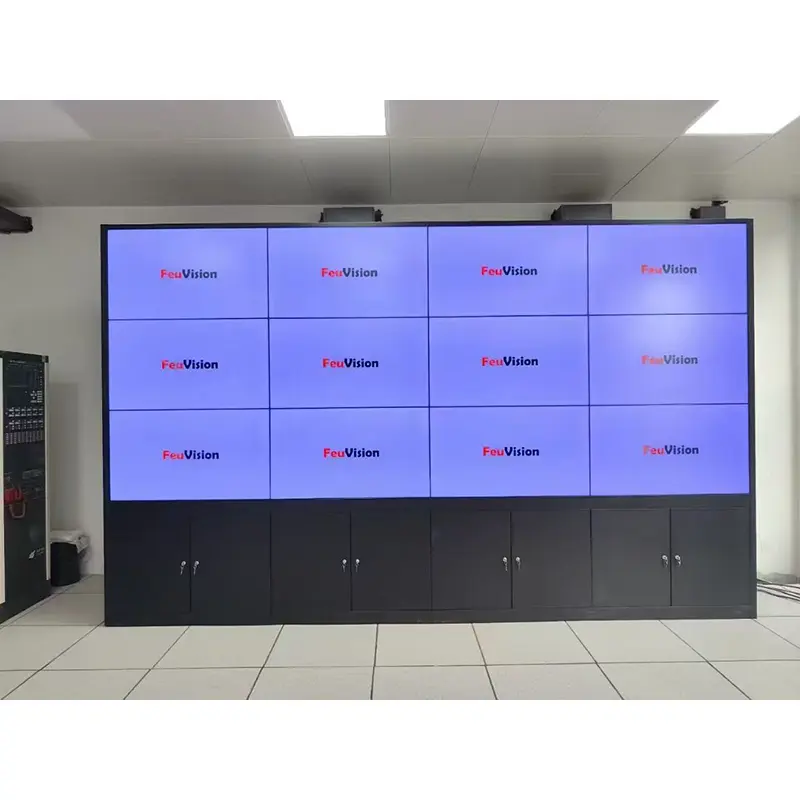

LCD Video Wall Mount

The LCD video wall mount is a modular metal support system specially designed for LCD video walls, widely applied in multi-screen splicing scenarios including security monitoring, conference centers, commercial advertising and traffic command centers. Made of high-strength cold-rolled steel plates with precision fine-tuning mechanisms, it supports wall-mounted and floor-standing installation, with independent adjustment for each panel to ensure uniform splicing gaps and flat overall surface. Directly supplied by the manufacturer, OEM customization is available.

Three Core Engineering Pain Points Solved

1. Uneven splicing gaps–6-way fine adjustment, minimum gap up to 0.5mm

2. Long-term sagging–Bottom load-bearing brackets + multi-point force bearing, no deformation within 8 years

3. Difficult maintenance–Independent disassembly for single panel, replacement within 90 seconds

Model Selection Guide

Why choose our LCD Video Wall Mount?

1. 6-way Fine Adjustment for Precise Splicing Gap Control

Equipped with vertical, horizontal and front-back 6-way adjustment mechanisms for post-installation trimming. Even with±5mm wall drilling errors, splicing gaps can be narrowed to 0.5–1.5mm (depends on screen bezel thickness).

Adjustment range:

•Vertical:±8mm

•Horizontal:±8mm

•Front-back:±5mm

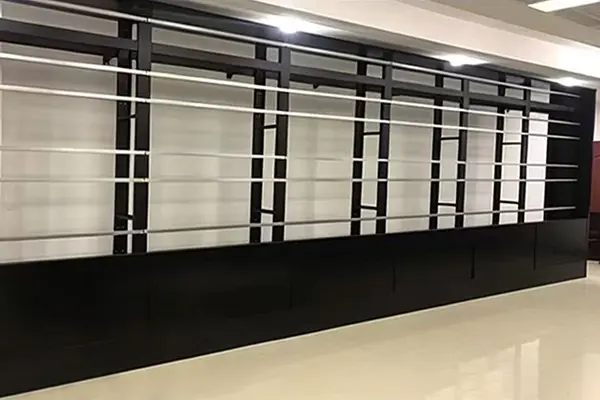

2. Modular Frame for Flexible Layout

Split assembly frame with precision positioning latches supports:

•Single row landscape layout (1×N)

•Multi-row matrix layout (M×N)

•Portrait screen splicing (for digital signage)

•Mixed landscape & portrait layout

Max single column height: 4m (approx. 6 pcs 46”/ 4 pcs 55”panels)

Unlimited horizontal extension via multiple column sets side by side

3. Independent Disassembly for Effortless Maintenance

Each panel is fixed with separate hooks. For faulty panel replacement or rear wiring inspection:

✅No need to dismantle adjacent screens

✅Single-person disassembly within 90 seconds

✅No impact on overall wall stability

4. Bottom Load Brackets Prevent Sagging

A single 55”panel weighs up to 35kg. Ordinary mounts rely solely on rear hanging, prone to forward tilt and bottom sag after long-term use.

This mount adds bottom load brackets to distribute panel weight to cross beams, with a safe single-panel load capacity of 80kg and zero deformation within 8 years.

5. Concealed Cable Management for Neat Appearance

Dedicated cable routing channels reserved in the frame for separated strong & weak current wiring:

HDMI cables, network cables and power cords fully contained

No exposed wires on the front of video wall

Compliant with fire control & security inspection standards

6. Dual Installation Modes Fit All Wall Types

Technical Parameters

Installation Steps (Wall-mounted for Reference)

2 workers required; a 4-panel video wall takes around 2 hours

Wall-mounted Installation Steps

1. Measuring & Positioning: Mark drilling positions on the wall per splicing layout drawing, calibrate with level gauge

2. Fix Cross Beams: Install horizontal cross beams (1 per row) with M10/M12 expansion bolts, spacing≤600mm

3. Pre-install Hanging Plates: Fix fine-tuning hanging plates to rear VESA holes of screens, ensure horizontal alignment

4. Mount Screens: Start from bottom row, slide screen hooks into cross beam slots and fasten latches

5. Fine-tune Splicing Gaps: Adjust 6-way jackscrews with hex wrench to narrow gaps to≤1.0mm

6. Cable Management: Route all cables into wire troughs and tighten anti-loose screws

7. Power-on Test: Check picture continuity, put into use after confirmation

Floor-standing Installation Steps

1. Assemble Columns: Connect left & right columns with bottom cross braces, install adjustable foot pads

2. Level Adjustment: Rotate foot pads for height adjustment, calibrate with level gauge

3. Add Diagonal Braces: Mandatory diagonal bracing for heights over 2m for reinforcement

4. Screen Mounting: Follow Step 3–5 of wall-mounted procedure

5. Final Locking: Tighten all connecting bolts and power on for testing

Applicable Scenarios

Comparison with Traditional Mounts

FAQ

Q1: What sizes of video wall panels does this mount fit?

A: Compatible with mainstream 46”, 49”and 55”video wall panels. For other sizes (43”, 65”), check our dedicated models or contact for customization.

Q2: Is it troublesome to replace partially faulty panels?

A: Independent hanging design allows separate disassembly of single panels without affecting the stability of the whole video wall.

Q3: Can the mount fit curved LCD splicing panels?

A: Standard video wall mounts are flat-structured. Curved adapters are required for curved LCD panels. Provide curvature radius and splicing radian for custom curved arms processing.

Q4: What’s the maximum screen load capacity and safety factor?

A: Designed single-panel load capacity: 80kg (destructive test load≥160kg), safety factor≥2.0. The heaviest mainstream 55”panel is approx. 30kg, 65”up to 45kg, both far below the design limit. Still verify actual load capacity of wall or ground before installation.

Q5: How to choose between wall-mounted and floor-standing types?

A:

•Concrete / solid brick wall→Wall-mounted (low cost, space-saving)

•Glass / marble / light steel keel wall (no drilling allowed)→Floor-standing (no decoration damage)

•Multi-site mobile usage→Mobile trolley mount (with casters)

Q6: Is it compatible with screens of other brands (Samsung/LG/BOE)?

A: Yes. VESA mounting holes cover 200×200mm to 800×600mm, compatible with over 95% of 46–55”commercial video wall panels on the market. Adapter plates or custom machining available for special hole patterns.

Why Choose Us?

•Over 10 years of video wall mount manufacturing experience

•ISO9001:2015 quality management system certification

•Self-owned factory with full in-house sheet metal processing, spraying and assembly

•Export experience: Products sold to over 30 countries including Europe, America, Southeast Asia and the Middle East

•Customization capability: Full-process OEM/ODM support with 3D drawing confirmation

•After-sales guarantee: Response within 24 hours, solution provided within 48 hours
