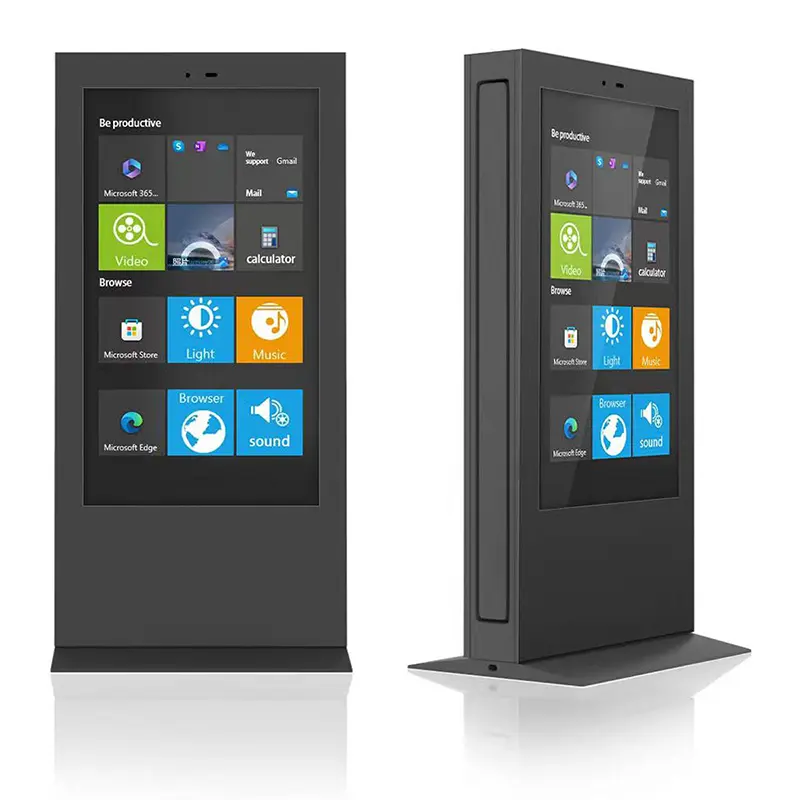

Vertical Stone Dual-Sided Display Cabinet
The Vertical Stone Dual-Sided Display Cabinet adopts an integrated structure with front and rear viewing windows. One cabinet can hold two display terminals to realize synchronized two-sided playback. It features a robust frame and wiring system specially optimized for dual-screen layouts with well-organized internal and external structures. Suitable for various indoor and outdoor display scenarios, it is a cost-effective supporting product for mass installation in shopping malls, walkways, industrial parks and other locations.

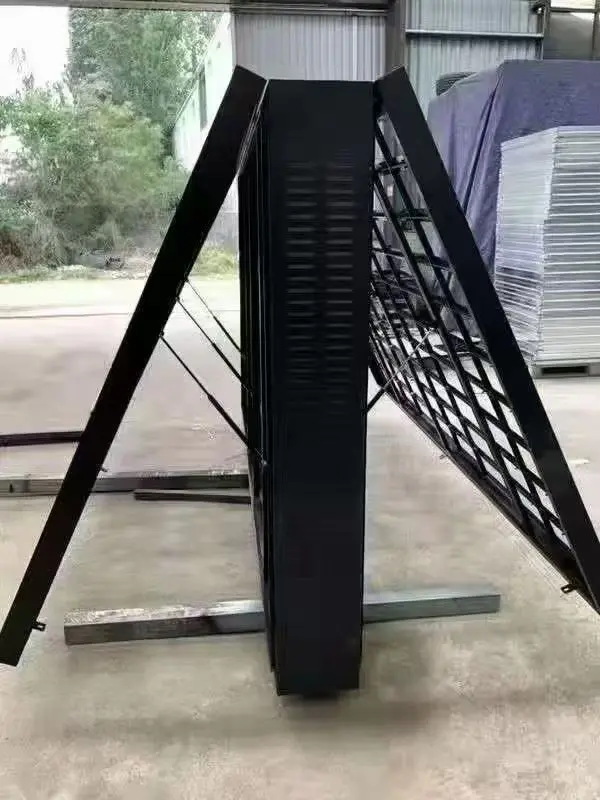

The Vertical Stone Dual-Sided Display Cabinet is an integrated cabinet with front and rear viewing windows. A single unit accommodates two display terminals, enabling synchronized or asynchronous content display from two directions at the same spot.
Core Commercial Value Comparison
|
Comparison Item |
Traditional Solution (Two Separate Single-Sided Screens) |
Vertical Stone Dual-Sided Display Cabinet |
|
Floor Space Occupied |
Double the space |
Single space |
|
Procurement Cost |
2 sets of brackets + 2 cabinets |
1 integrated cabinet |
|
Installation Man-Hours |
Double working hours |
Single working hours |
|
Cables & Wires |
Twice the wiring, messy layout |
Centralized, tidy wiring |
|
Maintenance Difficulty |
Two separate positions for maintenance |
Single access point with side service door |
Cost Advantages Over Two Independent Single-Sided Screens
|
Cost Category |
Two Separate Single-Sided Screens |
This Dual-Sided Cabinet |
Savings Per Location |
|
Cabinet & Bracket Purchase |
2 sets×¥800 = ¥1,600 |
1 set×¥1,100 = ¥1,100 |
¥500 |
|
Floor Space Rent |
Double area |
Single area |
Thousands of RMB annually |
|
Installation Labor |
2 workers×2 hours = 4 working hours |
2 workers×1.5 hours = 3 working hours |
1 working hour saved |
|
Wiring Consumables |
Two full wiring kits |
Integrated single wiring system |
Around ¥200 |
|
Annual Maintenance Cost |
Inspections at two separate spots |
Inspection at one spot |
Around ¥300 per year |
Material & Technical Specifications
|
Parameter |
Specification |
|
Product Name |
Vertical Stone Dual-Sided Display Cabinet |
|
Structure |
Integrated front & rear viewing windows, back-to-back assembly |
|
Overall Cabinet Thickness |
18cm (including screens) |
|
Compatible Screen Size |
32–55 inches per side; different sizes allowed on two sides |
|
Supported Screen Types |
LCD advertising machines, commercial displays, information release screens |
|

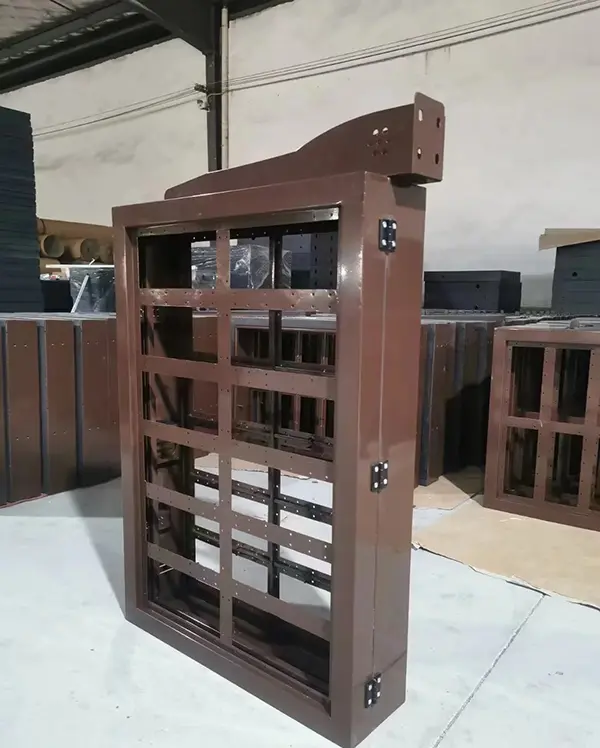

Frame Material |
Thickened galvanized steel, integrally welded |
|
Surface Treatment |
Electrostatic powder coating (Black / White / Silver Gray) |
|
Protective Panel |
High-transmittance PC board / Tempered glass (optional) |
|
Sealing Design |
Weather-resistant sealing strips all around for dust & moisture resistance |
|
Heat Dissipation |
Zoned independent cross ventilation with upper & lower air outlets |
|
Wiring Layout |
Dual independent wiring cavities at bottom, separate wire outlets for left & right sides |
|
Maintenance Access |
Side-opening service door |
|
Caster Specifications |
4-inch silent PU casters×4 (2 with brakes) |
|
Top Interfaces |
Optional lifting rings / splicing assemblies |
|
Expansion Method |
Quick-lock latches for side-by-side connection of multiple units |
|
Ingress Protection |
IP43 (indoor) / Custom IP54 (outdoor version) |
|
Operating Temperature |
-10℃~ 45℃ |
|
Color Options |
Black, White, Silver Gray, Customizable |
Product Advantages
✅Dual-sided display for maximum space efficiency
Independent visible screens on front and back. Ideal for walkways, pillars and partitions with bidirectional foot traffic, delivering double the display effect with one cabinet.
✅Integrated frame for stable impact resistance
Reinforced one-piece frame with balanced load-bearing for dual screens. No tilting or wobbling after long-term placement or minor impacts.
✅Zoned air ducts for balanced heat dissipation
Separate cross ventilation systems cool each screen independently to avoid heat buildup and ensure long-term stable operation.
✅Comprehensive protective design
Scratch-resistant high-transmittance protective panels plus full perimeter sealing against dust and moisture, safe for regular indoor and outdoor environments.
✅Neat dual wiring management
Two independent bottom wiring channels separate wire sets to prevent tangling, pulling and damage.
✅Easy maintenance for low operation costs

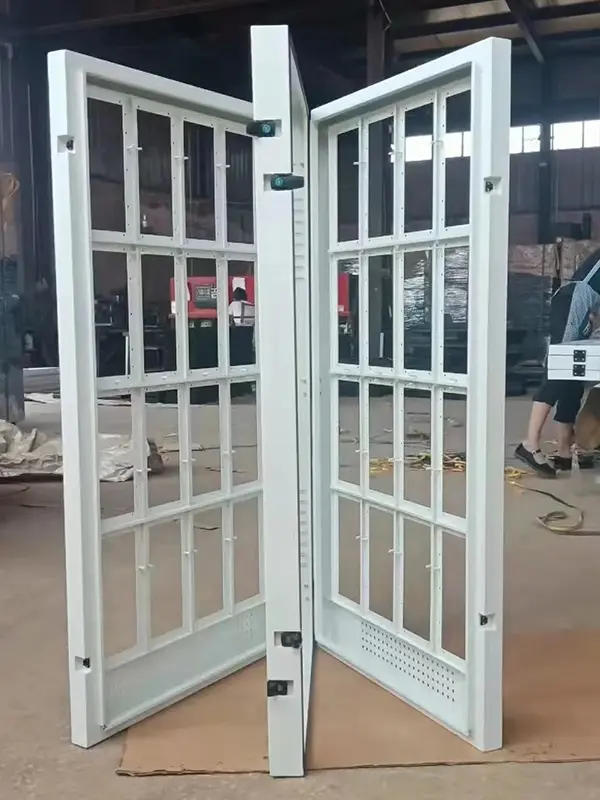

Side-opening service door eliminates the need to move the cabinet or remove panels for inspections, troubleshooting and cable sorting, cutting maintenance labor.
Installation Steps
Unpacking Inspection: Verify complete cabinet, casters, locking blocks and wiring accessories.
Caster Mounting: Screw 4 casters into bottom screw holes and level the cabinet.
Install Side A Screen: Slide the first screen into the slot, fasten with locking blocks and route wires from the left side.
Install Side B Screen: Secure the second screen the same way, route wires from the right side.
Wiring & Commissioning: Connect power and signal cables separately and confirm normal display on both sides.
Positioning & Locking: Push the cabinet to target location and engage caster brakes.
Multi-Unit Splicing: Link adjacent cabinets with quick-lock latches for extended layouts.
Applicable Scenarios & Location Value
This cabinet is engineered for locations with bidirectional pedestrian flow:
|
Scenario |
Location Features |
Dual-Sided Display Value |
|
Mall Atrium Pillars |
Surrounded by crowds on all sides |
Multiple units arranged for 360°visibility |
|
Corridors & Walkways |
Two-way pedestrian traffic |
Content visible to people passing both directions |
|
Park & Campus Entrances |
Inbound & outbound visitors |
Information reaches both entering and exiting people |
|
Barriers & Turnstiles |
Queues on both sides |
Visible ads for people lining up front and back |
|
Service Hall Partitions |
Separate internal & external crowds |
Simultaneous external promotion and internal notifications |
|
Station Waiting Lounges |
Passengers seated back-to-back |
Visible content for opposite groups of travelers |
Core Benefit: One dual-sided cabinet covers pedestrian flow from two directions, doubling advertising exposure efficiency.
Competitor Comparison
|
Comparison Item |
Two Separate Single-Sided Screens + Brackets |
Ordinary Simple Dual-Sided Bracket |
Vertical Stone Dual-Sided Display Cabinet |
|
Overall Thickness |
Two independent units |
20–25cm |
18cm |
|
Wiring Method |
Two separate messy cable sets |
Simple loose binding |
Dual independent wiring cavities, tidy layout |
|
Heat Dissipation |
Individual uncoordinated cooling |
No optimized design |
Zoned independent air ducts |
|
Maintenance Access |
Separate maintenance for each unit |
Panel disassembly required |
Side service door |
|
Ingress Protection |
None |
Minimal / No protection |
IP43 indoor / IP54 custom outdoor |
|
Multi-Unit Splicing |
Hard to align neatly |
Limited splicing capacity |
Precise alignment via quick-lock latches |
|
Overall Appearance |
Two disjointed devices |
Obvious splicing seams |
Smooth integrated appearance |
|
Bulk Order Support |
Available |
Available |
Small trial orders + full customization supported |
FAQ
1: Can the two sides use screens of different sizes?
A: Yes. Independent adjustable slots on both sides. For example, 43-inch on Side A and 32-inch on Side B. Matching screen thickness is recommended for balanced cabinet weight.
Q2: How to route wires after splicing multiple cabinets?
A: Each cabinet has independent wiring. Cables can be uniformly led out from both bottom ends after splicing without blocking inter-unit connections.
Q3: Can cabinet dimensions be customized to fit special screen sizes?
A: Multiple standard sizes are in stock; custom length, width and thickness are available to match all dual-sided display equipment.
Q4: Can the two screens play different content?
A: The cabinet has separate independent compartments for two displays with no mutual interference. Separate signal inputs support identical or differentiated content playback.
