Integrated Outdoor Cabinet with Upright Column

The Integrated Outdoor Cabinet with Upright Column combines protective cabinet and supporting column as one unit. No separate concrete foundation pouring or extra welded brackets are required; it can be directly buried or fixed via flange plates for immediate use.

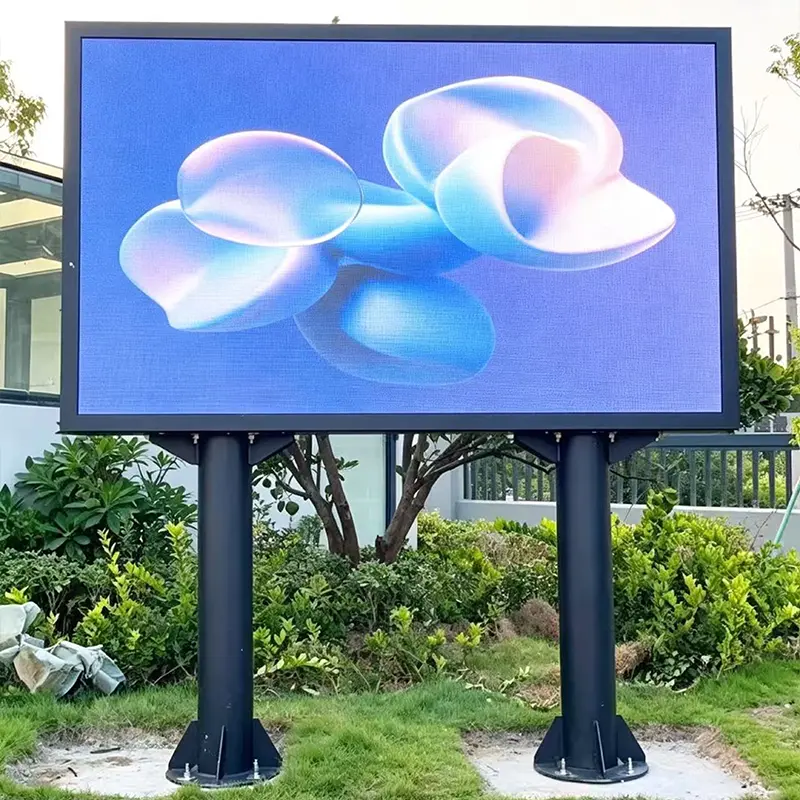

The cabinet is mounted on the top or middle of the column, suitable for installing equipment such as outdoor information release screens, video surveillance devices and public broadcasting systems.

Fabricated entirely from hot-dip galvanized steel or aluminum alloy with outdoor surface coating, it comes with embedded base sections or flange plates at the bottom for simple construction. It is especially applicable to rural roads, scenic trails, park green belts and other areas where large-scale ground excavation is restricted.

Product Parameters

Material & Structural Features

The integrated outdoor cabinet with upright column is formed by bending whole steel plates, with the column and cabinet integrated as a single piece. There are no redundant splicing joints, delivering excellent torsion resistance and anti-shake performance. Its surface is coated with special outdoor paint for superior weather resistance to cope with variable outdoor climates.

The equipment compartment adopts an embedded door design with special sealing accessories to block moisture and dust. Concealed side ventilation ensures air circulation without damaging the overall appearance. Modular mounting brackets inside allow flexible disassembly and fit various equipment sizes.

The hollow column allows all cables to run internally, keeping wiring neat and avoiding aging of exposed wires. The widened base at the bottom enhances stability, and all door hardware is reinforced against rust for long-term outdoor service.

Product Advantages

✅Integrated design for stable and durable overall structure

✅Full-range outdoor protection with scientific partition layout

✅Concealed wiring for higher safety

✅Floor installation occupies small space with convenient operation and maintenance

Installation Steps

1.Clear and level the installation ground. Unpack and inspect the integrated column cabinet, sealing parts, internal brackets, locks and all fasteners.

2.Lift and vertically position the integrated cabinet, adjust orientation, fasten bottom base fixtures, and calibrate verticality repeatedly to ensure stable upright placement.

3.Check that sealing strips on cabinet doors fit tightly. Open and close doors multiple times to test smooth operation of hinges and locks with zero gaps when closed.

4.Adjust and lock internal mounting brackets based on equipment dimensions to finish load-bearing structure debugging. Open the cabinet door, place equipment steadily and fasten fixtures to secure the equipment in proper position.

5.Connect equipment wires, route cables through the internal channel of the column, lead wires out from the bottom outlet with proper reserved slack.

6.Ensure ventilation windows are unobstructed and all sealing & fixing points intact. Close and lock the cabinet door, test normal equipment operation before official use.

Explanation of Installation Methods

Application Scenarios

FAQ

Q1: Can the height of the integrated column cabinet be customized?

A: We provide multiple standard heights. The total column height and cabinet mounting position can also be customized according to on-site demands.

Q2: Will ponding on the ground seep into the floor-mounted base?

A: The base is elevated with built-in waterproof wire holes, preventing backflow of ponding into the cabinet and column interior.

Q3: Can different-sized equipment be replaced later?

A: Multi-directionally adjustable internal brackets fit most standard equipment, greatly improving reusability.

Q4: Can it be installed on hardened ground?

A: Yes. Choose the flange plate base type, fix it to existing concrete ground with expansion bolts without digging pits.
