Rainproof and Moisture-proof Outdoor Cabinet

On the basis of standard rainproof performance, the Shushi Rainproof and Moisture-proof Outdoor Cabinet is upgraded with three core capabilities: moisture resistance, anti-condensation and anti-mold. It is specially designed for harsh environments with annual humidity above 80%, such as riversides, lakesides, underground parking lots, tunnels and foggy mountainous areas.

Core Advantages

Fully sealed structure equipped with replaceable moisture absorption boxes or optional electronic dehumidifiers, keeping internal humidity below 60%.

Multi-layer sealing for cable inlet & outlet plus inner anti-condensation coating to prevent equipment short circuits caused by dampness.

Corrosion-resistant plates with moisture passivation treatment to resist corrosion and rust.

Target Customers

Outdoor advertising engineering contractors, traffic signal system integrators, water treatment equipment suppliers and scenic area operators. Available for bulk procurement and mass deployment in engineering projects.

Product Parameters

Core Features

1.Multi-stage Moisture Control System

Standard replaceable moisture absorption box, with optional electronic dehumidifier to maintain internal relative humidity under 60%. It effectively avoids short circuits, corrosion and blurred display screens of electronic devices caused by dampness.

2.High-Tightness Sealing Structure

Deep interlocking door frame matched with thickened foam sealing gasket for excellent air tightness. The gasket is made of mildew-proof and waterproof material, free from mold growth and maintaining long-lasting elasticity.

3.Self-Drainage System

A complete drainage system consisting of multi-layer top water guide eaves, bottom water collection tank and one-way drain holes quickly drains accumulated water and eliminates ponding risks inside the cabinet.

4.Anti-Condensation Coating

Anti-condensation paint coated on inner walls stops condensed water generated by temperature difference from dripping onto equipment.

5.Corrosion & Moisture Resistant Materials

The cabinet is made of anti-corrosion plates with moisture passivation and outdoor coating treatment for superior anti-rust and anti-corrosion performance. All hardware parts are galvanized against rust.

6.Elevated Internal Layout

Elevated mounting brackets separate equipment from the cabinet bottom to isolate ground moisture. Matched with dedicated breather valves to balance air pressure and disperse internal dampness.

Application Scenarios

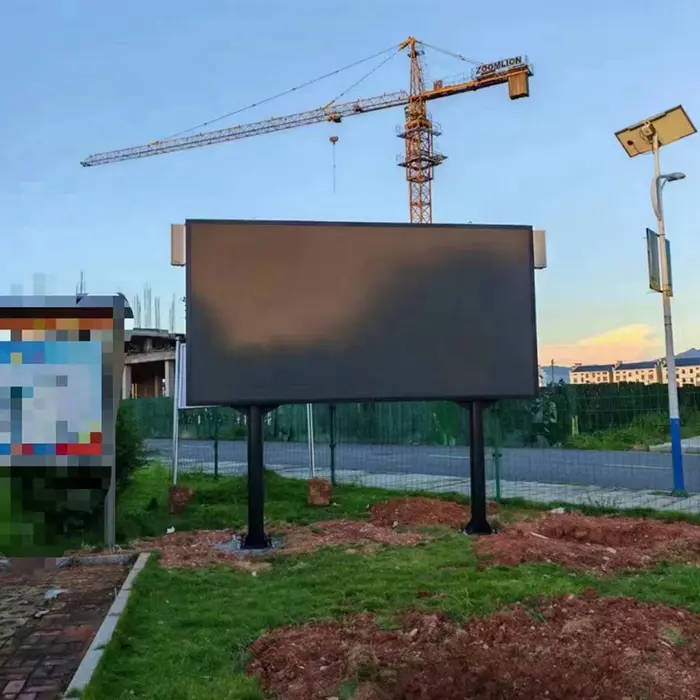

.Riverside, lakeside and seaside outdoor advertising screens

.Information screens in underground parking lots and tunnels

.Traffic guidance screens on foggy mountain roads

.Control boxes for water treatment plants and pump stations

.Outdoor equipment in cold chain logistics parks

.Guide boards in rainforest scenic spots

Comparison with Peer Products

Installation Steps

1.After selecting the installation position, clean the base surface and avoid low-lying waterlogged areas. Unpack and check all components: cabinet body, sealing parts, breather valves, mounting brackets and fasteners.

2.Place the cabinet in position and fix it via pre-reserved holes for floor-standing, wall-mounted or pole-mounted installation; adjust to horizontal level to keep the cabinet upright.

3.Inspect the door sealing gasket for intactness and no displacement. Open and close the door repeatedly to confirm tight closure and smooth lock operation.

4.Keep bottom drain holes unobstructed to ensure smooth water discharge.

5.Adjust internal elevated brackets according to equipment dimensions, lock the fixing structures, then place and fasten the equipment steadily.

6.Sort out all connecting wires, arrange them neatly and connect to terminals with reserved wire slack.

7.Double-check all sealing, drainage and ventilation parts. Close and lock the cabinet door, then power on and commission the equipment for operation.

Frequently Asked Questions

Q1: Can this Rainproof and Moisture-proof Outdoor Cabinet be installed in semi-outdoor spaces such as under awnings or outer corridor sides?

A: Fully compatible. It delivers outstanding protection for damp semi-open and semi-shaded locations.

Q2: Will the sealing gasket get moldy under long-term humid conditions?

A: The gasket is made of mildew-proof and waterproof material, resistant to mold with lasting elasticity and stable sealing performance over long-term use.

Q3: Is it suitable for foggy coastal areas with heavy salt fog?

A: The plates and coatings feature salt fog and corrosion resistance. Together with the fully sealed structure, the cabinet can operate stably in coastal humid environments.

Q4: What about the cabinet weight? Is wall-mounted installation reliable?

A: The structure is reinforced for load bearing. Standard sizes are stable for wall mounting and meet long-term outdoor installation standards.
