Front-maintenance Rainproof Cabinet

Shushi front-maintenance rainproof cabinets are custom-made for outdoor display screens, touch query terminals, self-service kiosks and other devices. Adopting a unique front pull-out or modular front-disassembly structure, core components such as screens, mainboards and power supplies can be pulled out from the front for maintenance without opening the cabinet door or moving the whole unit. The front maintenance port is equipped with sealed cover plates and waterproof rubber strips, which deliver reliable rainproof performance while greatly lowering maintenance difficulty. It fits wall-mounted advertising machines, bus electronic stop signs, outdoor query terminals and other installation sites with space constraints.

Comparison Between Front & Rear-Maintenance Cabinets

Key Product Characteristics

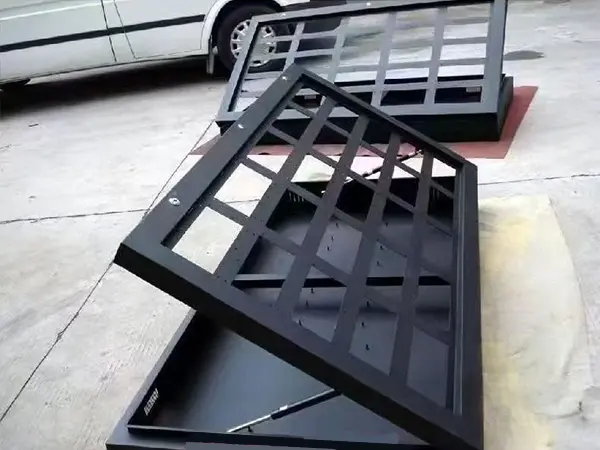

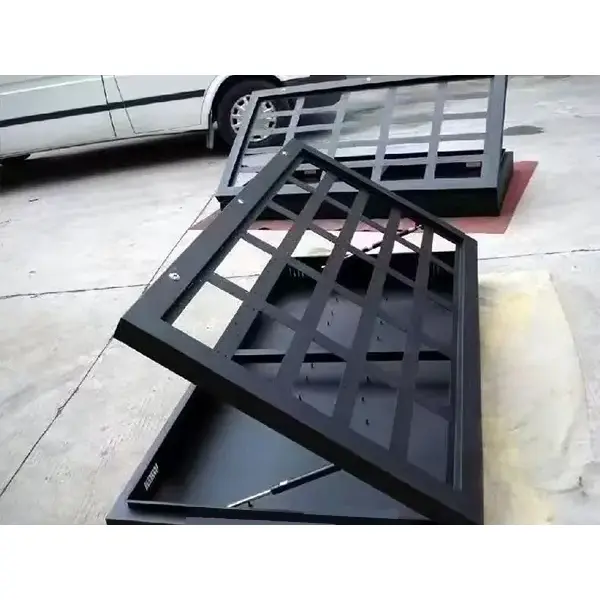

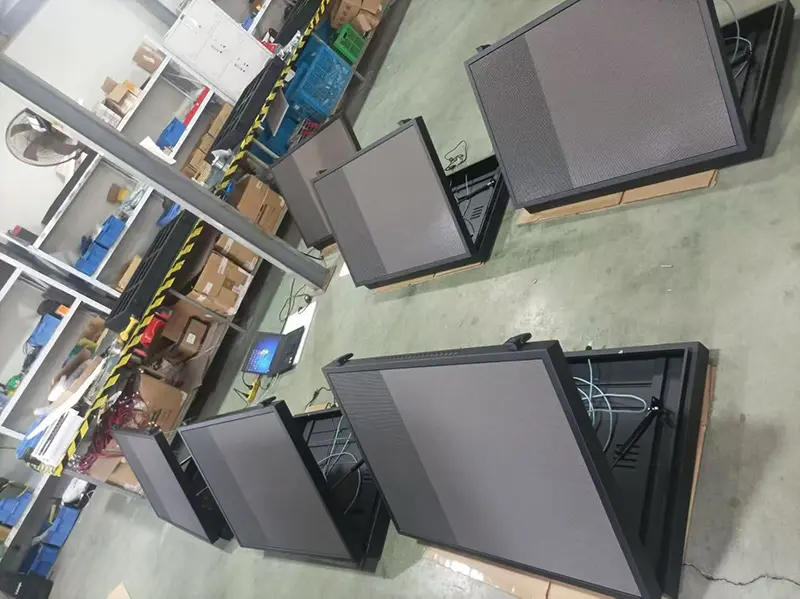

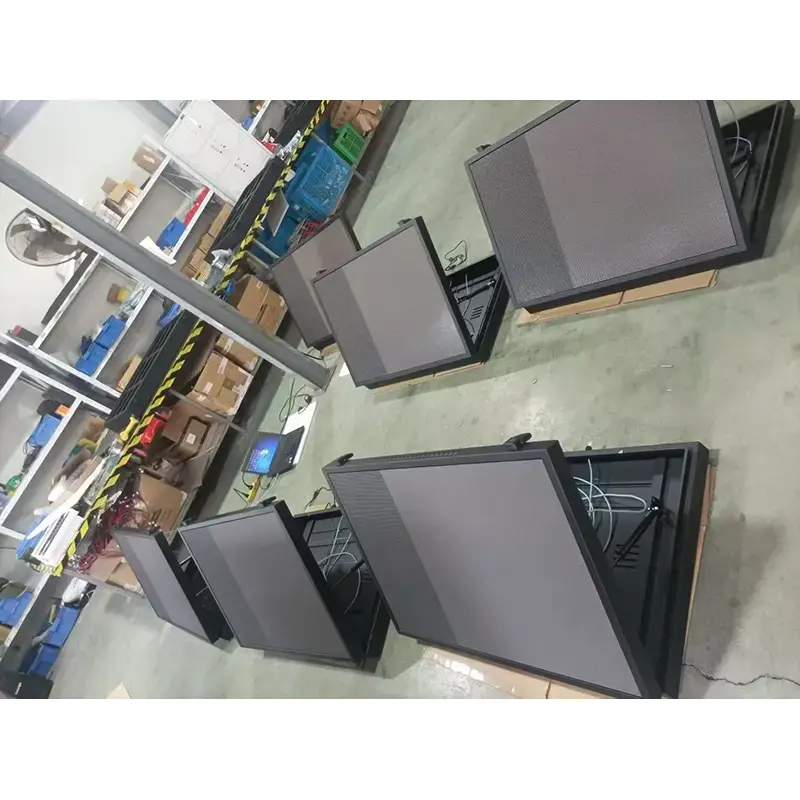

1.Front Pull-Out Maintenance: Screens and device assemblies are fixed on sliding pull-out plates. After unscrewing front panel screws, the whole assembly slides forward, exposing all wiring ports for easy access.

2.Modular Disassembly: Power supplies, control boards and display panels can be quickly detached separately. Faulty parts are replaceable without removing the entire cabinet.

3.Rainproof Sealed Cover: EPDM foam rubber strips line the inner side of the maintenance cover, forming double-layer sealing with the cabinet to prevent water seepage during heavy rain.

4.Concealed Hinges & Locks: Embedded stainless steel hinges and outdoor triangular locks deliver anti-theft performance while keeping a smooth, neat exterior.

5.Water Chute Design: Grooved water guide channels surround the cover to drain rainwater downwards and avoid water accumulation at seams.

Product Advantages

✅Front-side maintenance for high work efficiency

✅Flush cabin door for enhanced protection

✅On-board mounting for easy assembly & disassembly

✅Enclosed rear casing for seamless wall mounting

✅Weather-resistant & rust-proof for long service life

✅Concealed wiring for safety and tidiness

✅High universality for wide-range applications

Application Scenarios

1.Shopping Mall Corridors & Walkways: Wall-mounted without occupying passage space, perfect for dual-side advertising screens and promotion displays.

2.Park & Residential Gateways: Mounted on boundary walls or sentry boxes; maintenance accessible from front even if rear side is blocked.

3.Bus Stops: Attached to shelter backboards without narrowing platform width; no rear access needed for repairs.

4.Elevator Lobbies & Building Lobbies: Wall or pillar-mounted with clean appearance and convenient maintenance.

5.Underground Parking Garages: Pillar-mounted parking guidance screens that do not protrude into traffic lanes; fast front-side servicing.

6.Narrow Streets & Roadside Areas: Wall-mounted without protruding over sidewalks, suitable for roadside information kiosks and advertising displays.

7.Indoor Wall-Mounted Settings: Exhibition halls, meeting rooms and classroom display screens with unobtrusive wall installation.

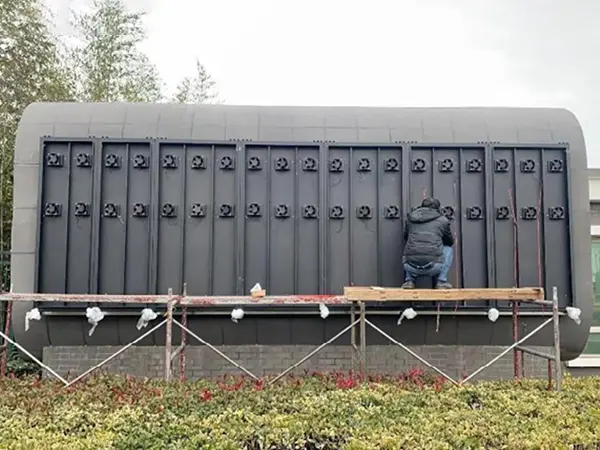

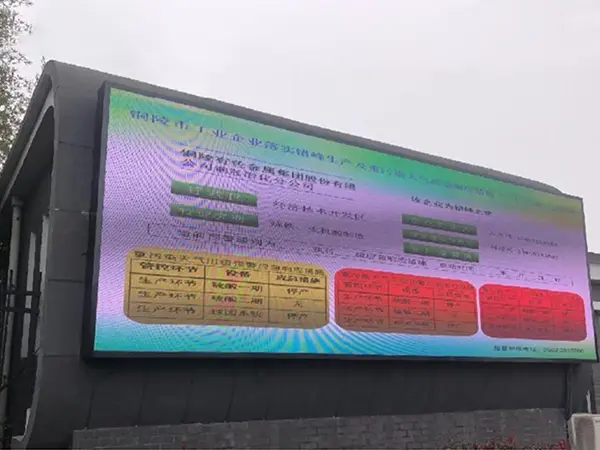

8.Exterior Building Walls: Direct wall hanging; no indoor entry required for front maintenance.

9.Medical & Educational Premises: Hospital corridors and school exterior wall screens; maintenance causes minimal disruption to daily operations.

Installation Steps

1.Fix the cabinet backboard to walls or pillars using expansion bolts.

2.Slide the pre-assembled pull-out unit (pre-fitted with screens and control boards) into cabinet slide rails and lock limit buckles.

3.Route external cables through waterproof bottom cable glands, arrange and secure wiring neatly.

4.Close the front cover and fasten the triangular lock.

Comparative Table: Shushi Cabinet vs. Ordinary Front & Rear-Maintenance Cabinets

Frequently Asked Questions

Q1: How much wall clearance is required for installing a Front-maintenance Rainproof Cabinet?

A: Only 0–5 cm. All operations are completed from the front, so no maintenance space needs to be reserved behind the cabinet, allowing direct wall or pillar mounting. This is the biggest advantage over rear-maintenance cabinets.

Q2: Will wall mounting affect heat dissipation?

A: No. The ventilation openings are located on the side and bottom of the cabinet; the rear casing does not participate in heat dissipation. Cross air flow is formed via side louvers and bottom air intake, ensuring smooth air circulation even when flush against walls.

Q3: What scenarios are suitable for front-maintenance cabinets?

A: They are best for space-limited locations, including corridors, wall/pillar mounting, bus stops, elevator lobbies, narrow streets, and any sites unable to reserve an 80cm rear maintenance clearance.

Q4: Which structure is more stable: front or rear-maintenance cabinets?

A: Both share identical structural strength. Front-maintenance cabinets adopt integrated full-welded thick steel plates, delivering the same wind resistance and impact resistance as rear-maintenance models. The only difference lies in door opening direction, which does not affect structural robustness.

Q5: Is maintenance more complicated than rear-maintenance cabinets?

A: On the contrary, maintenance is far simpler. Rear-maintenance units require technicians to walk around the back and reserve standing space. Front-maintenance cabinets allow all installation, wiring and screen replacement work to be completed directly from the front by a single worker.

Q6: Does the front-maintenance cabinet offer reliable waterproof performance?

A: Yes. It reaches IP54–IP65 ingress protection rating. The steep sloped top accelerates rainwater runoff; full-perimeter elastic sealing strips tightly seal the cover when closed; cables are routed through sealed bottom waterproof glands. Staggered louvers ensure ventilation while blocking rain ingress.
