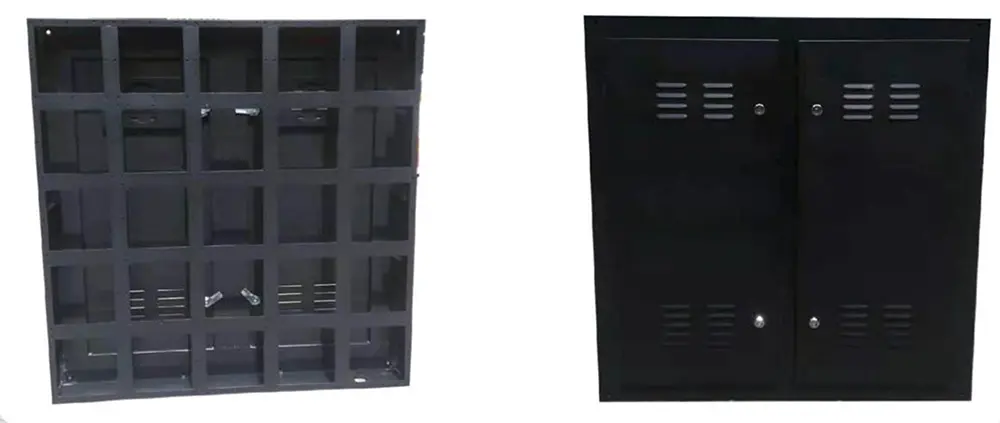

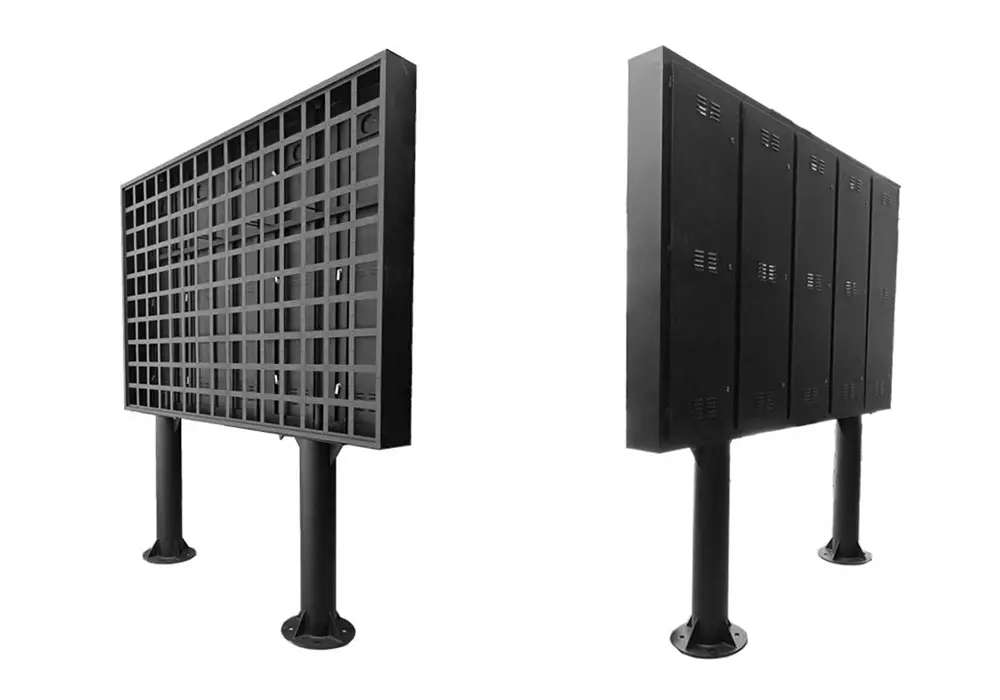

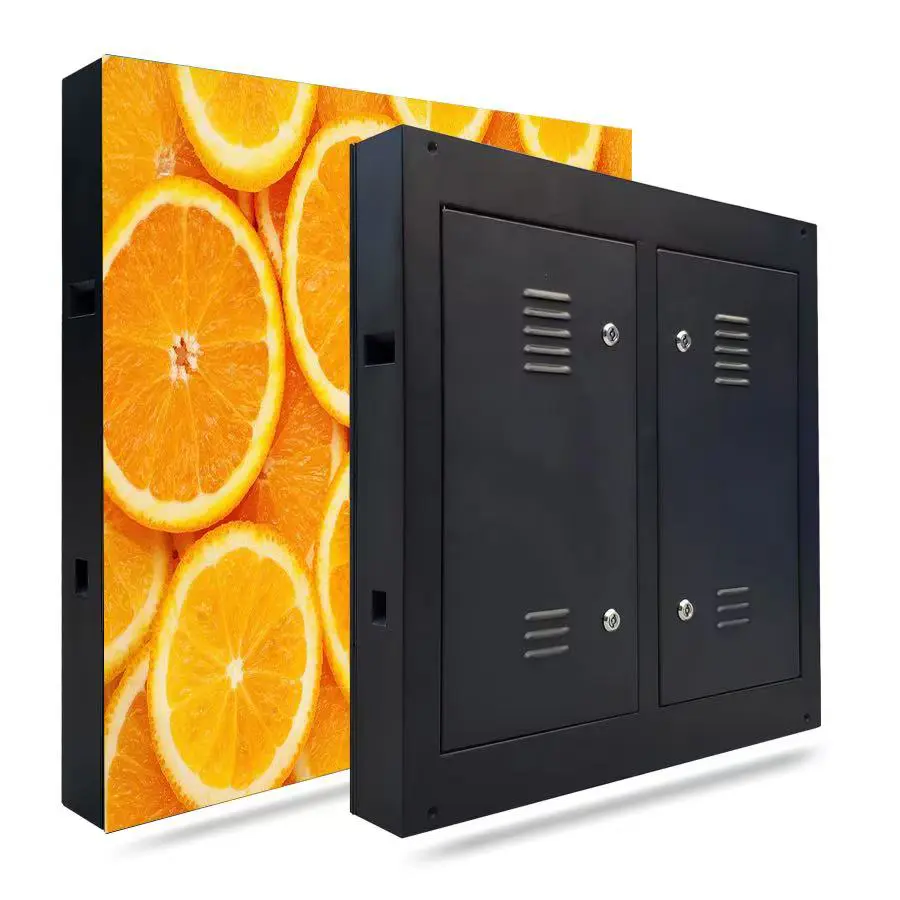

Waterproof Outdoor Case

Waterproof Outdoor Case is an entry-level outdoor protective enclosure designed for electronic equipment requiring basic rain protection—such as standard LCD screens, advertising light boxes, power control units, and communication devices. Constructed from cold-rolled steel or aluminum alloy, the housing features an outdoor-grade powder-coated finish, waterproof sealing strips at the joints, and drainage holes at the bottom. With an IP54 protection rating, it effectively prevents the ingress of splashing rain from any direction. It offers a simple structure, standardized cutout locations, and flexible installation options (wall-mounted, pole-mounted, or floor-standing). Economically priced, it is ideal for basic outdoor applications where moisture and dust resistance requirements are moderate, but rain protection is essential.

Product Specifications

Material and Structural Characteristics

The enclosure utilizes a modular, interlocking frame design, with panel surfaces treated to be hydrophobic, allowing water droplets to slide off quickly without pooling. The door features a staggered compression seal—distinct from standard flush-edge designs—to further prevent rainwater ingress. Independent rain-proof louver assemblies are installed on the sides, physically separating the airflow channels from the internal compartment. Internally, a suspended mounting platform maintains a clearance gap from the enclosure walls. Cable outlets are equipped with integrated waterproof connectors, and all connection hardware undergoes passivation for rust resistance, ensuring suitability for diverse outdoor operating conditions.

Waterproof Outdoor Case vs. Standard Sheet Metal Box

Product Advantages

✅Full-coverage waterproofing, suitable for rainy environments
✅Sturdy structure, wind-resistant and durable, offering both ventilation and dust protection
✅Flexible installation and high versatility
✅Adaptable to diverse scenarios; easy and convenient O&M

Applications

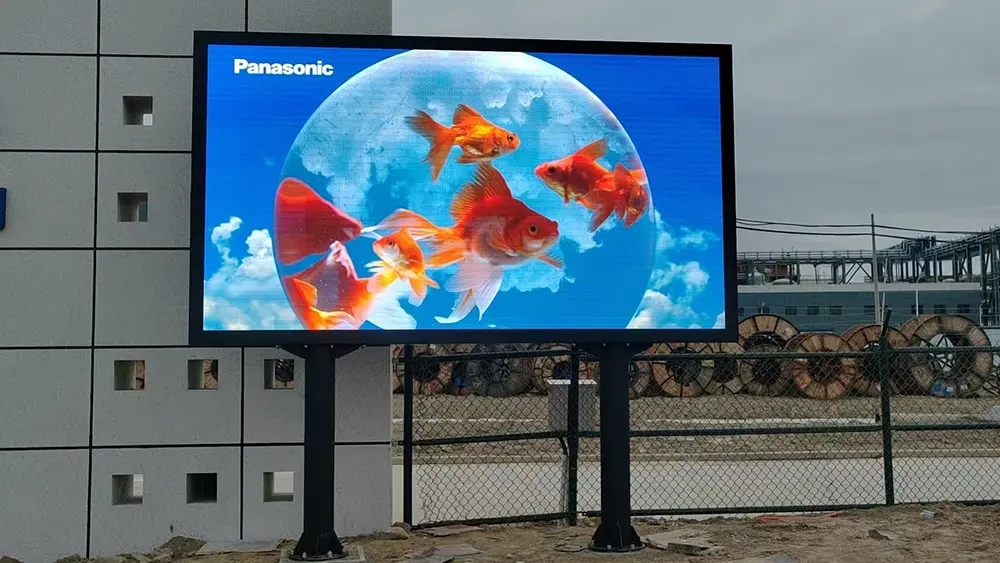

Outdoor street-side display units: Light boxes and information screens; rain protection is the only requirement—no need for unnecessary expense.

Factory-site outdoor electrical enclosures: For power supplies and controllers; suitable for open-air placement.

General-purpose protective enclosures for public squares: For temporary events or permanent installations; maintenance-free after setup.

Community perimeter terminal boxes: For parcel lockers and access control systems; simple and practical.

Street-front shop promotional displays: Outdoor screens; rain and dust protection is sufficient.

Park electrical enclosures: For street lighting controls and PA systems; prioritizes durability over aesthetics.

Temporary outdoor equipment setups: For short-term events or temporary surveillance; low cost, so replacement isn't a concern.

Outdoor low-voltage cabinets for older residential complexes: Renovation projects requiring bulk replacement; cost-effectiveness is the priority.

Installation Steps

1: Positioning and Drilling: Mark the location on the wall, drill holes, and install expansion bolts (spacing must align with the keyhole slots on the enclosure's back panel).

2: Mounting the Enclosure: Align the keyhole slots on the back panel with the bolt heads and slide the enclosure downward to secure it.

3: Cable Routing: Feed power and signal cables through the waterproof connectors at the bottom and tighten the connectors.

4: Installing Equipment: Place the display screen or control unit inside the enclosure and secure it to the back panel using self-tapping screws (requires drilling holes as needed).

5: Wiring and Organization: Connect the cables and secure them with cable ties.

6: Closing and Locking: Ensure the sealing gasket is not twisted, then close and lock the door.

FAQ

Q1: Will prolonged outdoor sun exposure accelerate the aging of the enclosure's paint finish?

A: The specialized outdoor powder coating offers strong UV resistance, ensuring the finish does not easily fade or peel under long-term sun exposure.

Q2: Will water seep through the door gaps during driving rain?

A: An extended rain guard combined with a full-perimeter sealing structure effectively withstands driving rain, preventing seepage under normal rainfall conditions.

Q3: Can the enclosure be installed by a single person?

A: Standard small-to-medium-sized enclosures are of manageable weight; a single person can complete the installation and mounting using simple tools.

Q4: How does it perform in environments with high levels of dust and sand?

A: The sealing structure, combined with a dust-resistant ventilation design, effectively blocks the entry of dust and sand, keeping the interior clean.
