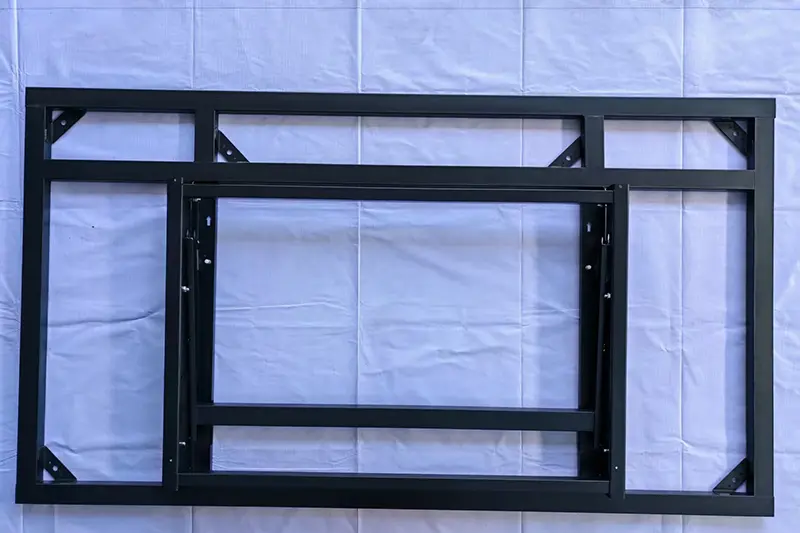

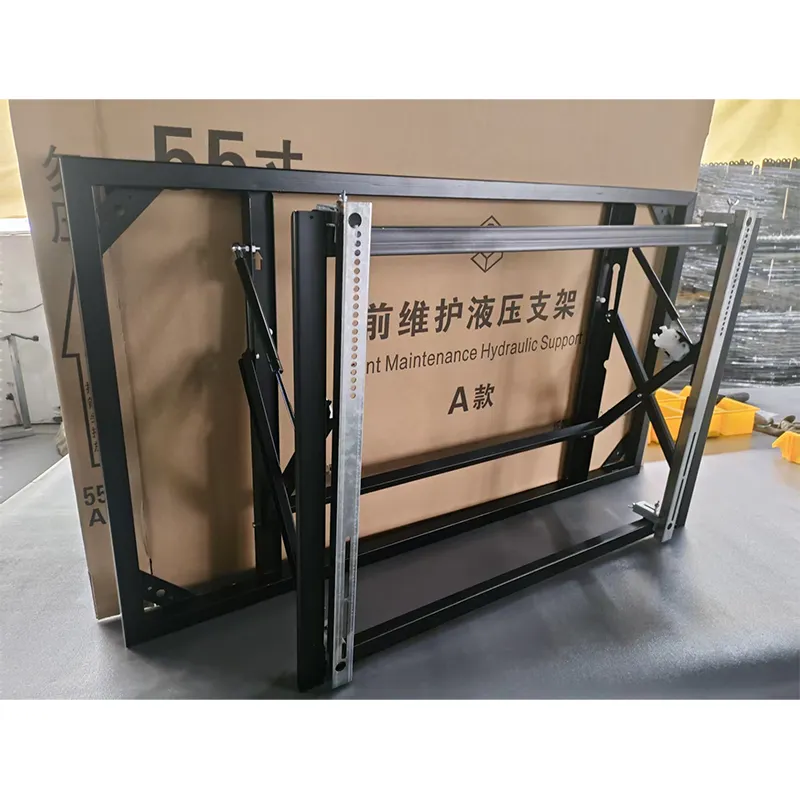

LCD 86-inch Vertical Hydraulic Bracket

Custom-made for wall-mounted vertical installation of 86-inch LCD screens, the LCD 86-inch vertical hydraulic bracket adopts 2.5mm thickened steel plates and a dual hydraulic rod system, integrated with a four-hook and support plate load-bearing structure, five anti-falling locks and a concealed cable management compartment. It supports hydraulic pitch adjustment and rapid disassembly, with a maximum load capacity of 120kg, ideal for vertical screen installation scenarios in large conference rooms, command centers, digital exhibition halls and more.

Core Structure & Materials

1. Main Frame:

Thickened high-strength cold-rolled steel plates plus reinforced aluminum alloy uprights, integrally formed for anti-deformation performance and enhanced load-bearing capacity

2. Hydraulic Components:

Long-stroke industrial hydraulic cylinders with stable buffering and evenly distributed bearing pressure for effortless lifting of large screens

3. Hanging Plate Assembly:

Widened VESA vertical hanging plate exclusive to 86-inch screens, compatible with mainstream hole patterns including 400×600 and 600×800

4. Safety Structure:

Triple anti-drop locks plus anti-slip shock-absorbing rubber pads to prevent accidental loosening and protect the display panel

5. Fixing Fittings:

National standard thickened expansion bolts for even wall stress and firmer installation

Product Advantages

1. Custom structure for oversized screens

Optimized mechanical design exclusively for 86-inch vertical mounting, more stable, well-fitted and safer than universal brackets. Reinforcing ribs are added at key stress points to avoid deformation after long-term use.

2. Dual hydraulic rods–labor-saving & redundant safety

An 86-inch screen weighs heavily; single hydraulic rods require extra force during adjustment and are prone to oil leakage. Parallel dual rods deliver evenly distributed damping for easy adjustment. If one rod malfunctions, the other can still provide support for higher safety.

3. Five-layer anti-fall protection

Combined main buckle, auxiliary lock, anti-lift baffle, hand-twisted anti-lift screws and anti-slip rubber pads, suitable for high-foot-traffic commercial environments.

4. Low operation & maintenance costs

Tool-free screen removal: Unlock safety latches, twist hand screws and lift the screen upwards.

Reserved maintenance gaps on side panels: Back cables can be maintained without removing the screen.

Magnetic cable management compartment: Cables can be added or replaced without tools.

5. High space utilization

Wall-mounted vertical design occupies minimal horizontal space, perfect for narrow spaces such as corridors, lobbies and elevator entrances.

6. Wide application range

Applicable to conferences, exhibitions, shopping malls, hospitals, government offices, live streaming studios and other scenarios.

Installation Steps (Exclusive for 86-inch Vertical Mounting)

1. Check wall load capacity, calibrate the vertical center line with a level and mark drilling positions

2. Drill holes, install thickened expansion bolts and fix the main base to ensure verticality and firmness

3. Mount the widened VESA hanging plate onto the standard holes on the back of the 86-inch screen

4. Align the screen with the bracket clamping slots and hang it slowly; the hydraulic system provides automatic bearing and buffering

5. Fasten triple anti-drop safety locks and check for looseness

6. Arrange cables into vertical cable channels and adjust height and pitch angle

7. Conduct a full stability inspection before putting into use

Applicable Scenarios

FAQ

Q1: 86-inch screens are heavy. Can the bracket support them stably without deformation?

A: Yes. Strict load-bearing tests have been conducted. The main body uses 2.5mm thickened steel plates with reinforcing ribs at key stress points, showing no deformation under a static ultimate load of 150kg. Most mainstream 86-inch commercial screens (Sony, Samsung, LG, etc.) weigh 55–70kg, far below the design load limit. It is recommended to check screw tightness every six months.

Q2: What are the advantages of dual hydraulic rods over single rods?

A: Two core merits:①Uniform damping: Heavy 86-inch screens demand high damping force from single rods, making adjustment labor-intensive and increasing oil leakage risks. Parallel dual rods evenly distribute stress for smoother operation.②Redundant safety: If one hydraulic rod fails, the other can still offer basic support, a safety feature unavailable with single-rod designs.

Q3: Do tools need to be used to remove the screen?

A: No tools are required for the screen disassembly mechanism–simply flip the safety latches and twist the anti-lift hand screws to lift the screen. However, 86-inch screens weigh 55–70kg, so two operators are strongly recommended. For cable maintenance (e.g., plugging/unplugging HDMI cables), screen removal is unnecessary thanks to reserved side maintenance gaps.

Q4: How to add new cables after concealing wiring?

A: Extremely convenient. The cable compartment cover is magnetically fixed and can be opened without tools. Add or replace cables by pulling open the cover, routing wires inside and closing it–no screen disassembly needed.

Q5: What wall types are suitable for the 86-inch screen installation?

A: Only solid concrete walls or solid brick walls are acceptable. Drywall, light steel keel walls and hollow block walls cannot safely bear the weight of an 86-inch screen. The supplied thickened expansion bolts are specially designed for concrete and solid brick walls. Professional on-site inspection is advised if wall type is uncertain.

Q6: How heavy is an actual 86-inch screen, and how many installers are needed?

A: Most mainstream 86-inch commercial screens weigh 55–70kg net. One person can mount the wall base, while screen hanging requires two workers (one holding the screen, one aligning the hooks). Lifting equipment or machinery is recommended to avoid personal injury.
