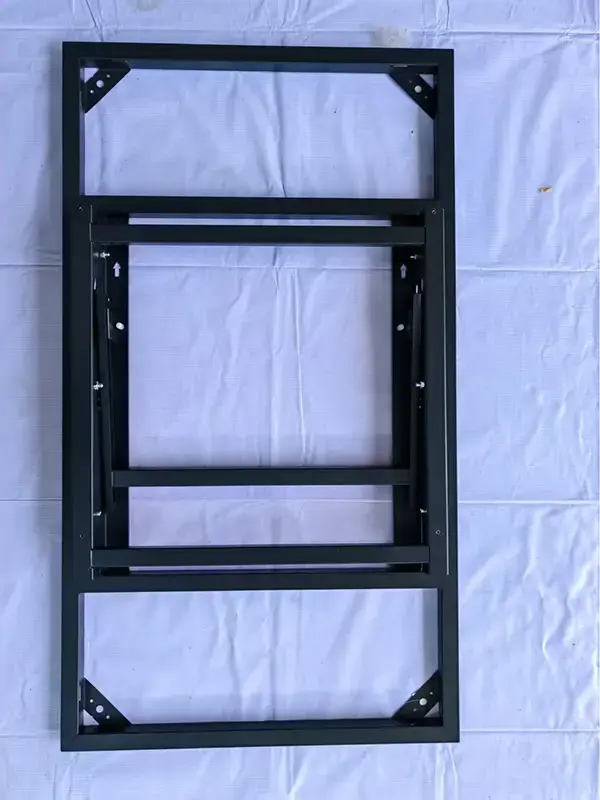

LCD 65-inch Vertical Mount Hydraulic Bracket

This LCD 65-inch Vertical Mount Hydraulic Bracket is constructed from thickened cold-rolled steel and features a hydraulic strut, an integrated quick-release mounting plate, a dual-locking safety mechanism, and an adjustable tilt function. Designed specifically for wall-mounting 65-inch LCD screens in a vertical orientation, it supports quick detachment and angle adjustment, making it ideal for vertical display applications in shopping malls, showrooms, and conference rooms.

Main Functional Highlights

Hydraulic-assisted Angle Adjustment

No tools required. Simply push the screen gently by hand to adjust the tilt angle (approximately -1°to +1°). The hydraulic rod automatically holds the position after releasing hands. It is ideal for eliminating screen glare and accommodating viewers of different heights.

The Whole Screen Can Be Removed

The bracket consists of two parts: wall base and screen back plate. The back plate is fixed on the back of the TV while the base is mounted on the wall. Buckles lock tightly after hanging the screen. To disassemble, just unlock the safety latch and lift the screen upward, and the wall base does not need to be removed.

Optimized Load-bearing for Vertical Installation

The center of gravity of a vertically mounted 65-inch screen is relatively high. The bracket adopts thickened steel and multi-point upper and lower fixing structure, with a tested load capacity of 80kg. It will not lean forward or tilt left and right after long-term use.

Minimal Wall Damage

Only 4 to 6 holes for expansion screws need to be drilled with even force distribution. Only tiny holes will remain on the wall after later disassembly without affecting appearance.

Installation Steps

1. Confirm the mounting height on the wall (the center of the screen is generally slightly lower than the horizontal line of sight), draw lines with a spirit level and mark drilling positions.

2. Drill holes with an electric hammer, insert expansion tubes and fasten the wall base tightly.

3. Fix the hydraulic movable hanging plate to the VESA holes on the back of the 65-inch screen with screws (common hole distances: 400×400 or 600×400).

4. Align the hanging plate on the screen with the slot of the wall base and lower it into place. A "click" sound means the main buckle is locked.

5. Toggle the side safety latch for secondary fixation. Push the upper and lower edges of the screen to test whether hydraulic adjustment is smooth, and fine-tune the tilt angle as needed.

6. Arrange power cords and HDMI cables along the wire grooves on the side of the bracket, shake the screen to confirm stability, then it is ready for use.

Materials & Craftsmanship

FAQ

Q1: How much does a 65-inch screen weigh? Can the bracket hold it firmly?

A: The net weight of mainstream 65-inch LCD screens is about 20-30kg. The maximum safe load capacity of this bracket is 80kg with sufficient margin. Prerequisite: It must be installed on solid walls or concrete walls, and light partition walls are not recommended.

Q2: Can it only be installed vertically? Can I switch between vertical and horizontal orientation?

A: This model is specially designed for vertical screens with optimized gravity balance for portrait installation. If switching between vertical and horizontal modes is required, it is recommended to purchase our rotating bracket.

Q3: Will the screen droop after installation?

A: No. The hydraulic rod has a self-locking function, which automatically maintains the adjusted angle and will not slide down due to the screen's own weight.

Q4: Is it really convenient to remove the screen?

A: Very convenient. Adopting buckle plus safety lock structure without any tools. Unlock the latch and lift the screen upward to take it off, leaving the wall base installed. Suitable for screen replacement, dust cleaning and maintenance.
