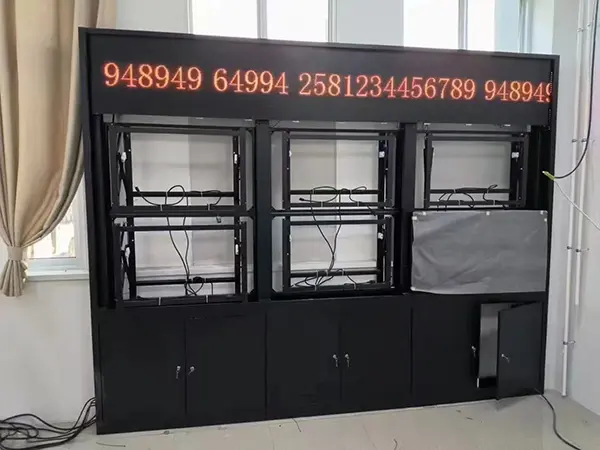

LCD Front Maintenance Cabinet

The LCD Front Maintenance Cabinet is an installation and support structure specially designed for LCD video wall screens and LCD display units. It adopts a full front-maintenance design concept, allowing installation, disassembly, inspection, and maintenance of the display equipment and internal components to be carried out directly from the front of the cabinet without the need for rear maintenance access.

The main structure is usually made of cold-rolled steel or aluminum alloy, offering good load-bearing performance, structural stability, and corrosion resistance. It is widely used in security monitoring centers, command and dispatch centers, conference rooms, exhibition halls, and commercial display applications.

Common Structural Components:

· Cabinet main frame

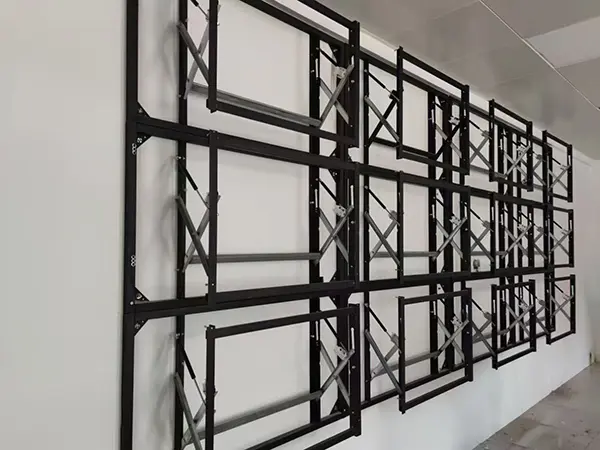

· Front maintenance bracket

· Screen mounting components

· Cable management system

· Heat dissipation structure

· Power supply and equipment installation area

Product Parameters

What problems can the product solve?

Key Features

1. High-strength structure: Made of premium cold-rolled steel with strong load-bearing capacity.

2. Efficient cooling system: Equipped with silent cooling fans and ventilation holes to create air convection and effectively reduce internal cabinet temperature.

3. Flexible compatibility: Adjustable internal mounting brackets to fit different LCD screen sizes, compatible with various brands and specifications.

4. Organized cable management: Built-in cable channels and wiring racks keep power and signal cables neatly arranged, making maintenance easier and reducing signal interference.

Product Advantages

High space utilization, easy maintenance, stable structure, strong environmental adaptability, and elegant appearance.

Installation Process

Positioning → wall drilling and fixing → frame assembly layer by layer → cable wiring → installation of hydraulic/electric brackets → screen mounting → precision adjustment → power-on testing.

Application Scenarios

This product can be customized for various LCD video wall installations, supporting flat, curved, and irregular layouts with no width limitation. It is widely used in security monitoring centers, traffic control rooms, exhibition halls, medical systems, financial trading centers, and other commercial display applications.

FAQ

1. What is the load capacity of the front maintenance bracket?
The standard front maintenance bracket supports 15kg–35kg depending on the model. For large screens over 55 inches with ultra-narrow bezels, reinforced brackets are recommended. Please confirm screen weight and bracket capacity before ordering.

2. How is the cooling performance?
The cabinet features a dual vertical airflow channel design combined with built-in low-noise high-speed cooling fans, ensuring efficient heat dissipation.

3. Can non-standard sizes be customized?
Yes. We can customize cabinet height, depth, and structure according to customer requirements and support non-standard screen configurations. Please provide detailed dimensions and load requirements in advance.

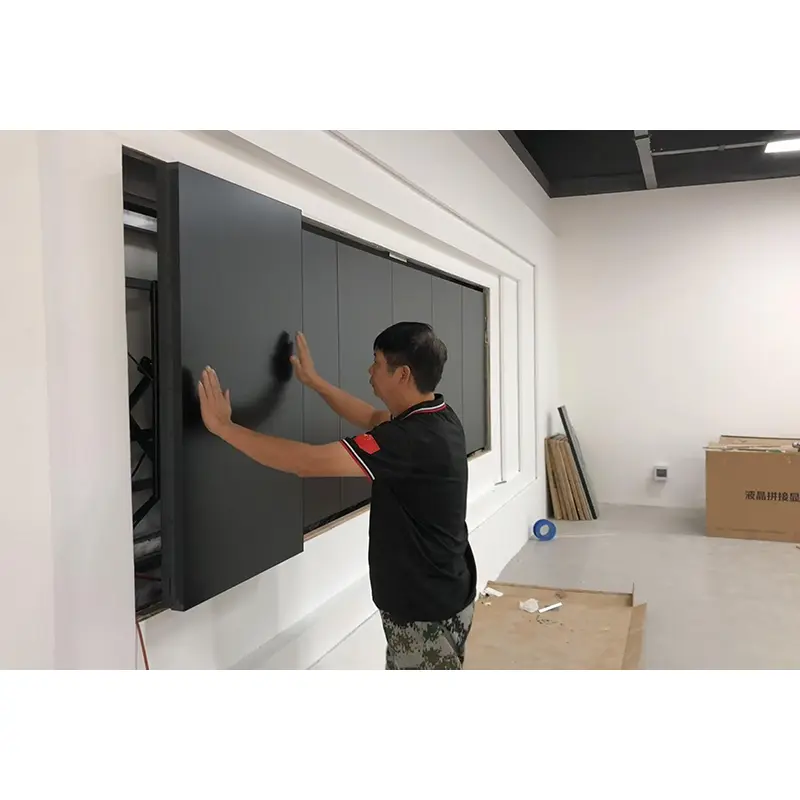

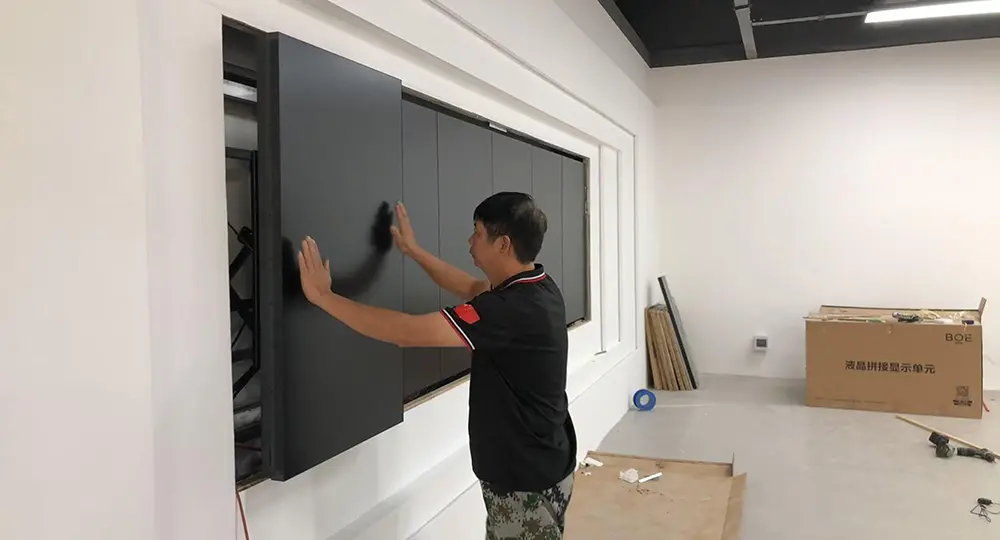

4. How to replace a damaged screen? Will it affect adjacent screens?
No. Each screen is independently mounted with a front-maintenance bracket. The faulty screen can be pulled out and replaced directly without affecting adjacent displays, which can continue working normally.

5. What are the advantages of the front maintenance structure?
It eliminates the need for rear maintenance space, allowing installation and servicing from the front, making it ideal for space-limited projects.

6. How is the heat dissipation performance?
The product adopts a dual-channel ventilation structure with low-noise cooling fans, effectively reducing operating temperature.
