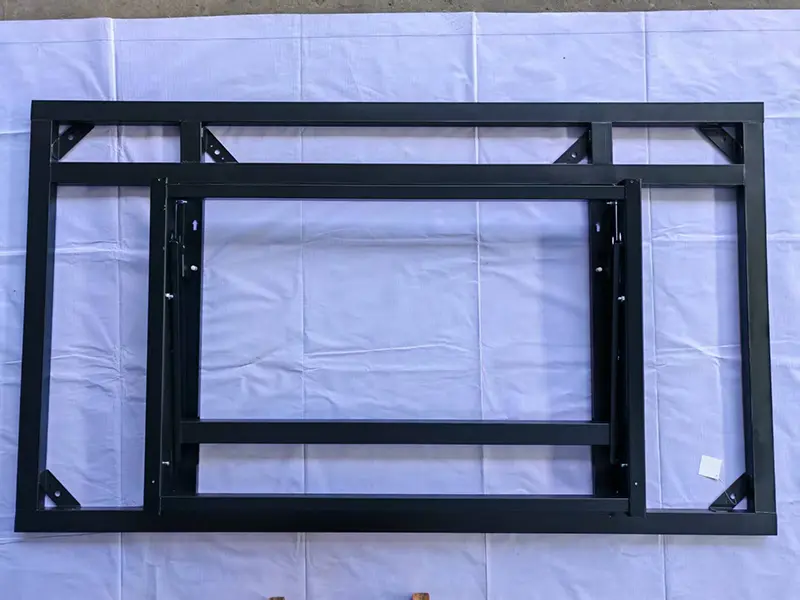

LCD 75-inch Vertical Mount Hydraulic Bracket

LCD 75-inch Vertical Mount Hydraulic Bracket is an integrated heavy-duty support device with vertical installation, hydraulic buffer and quick-release maintenance functions, tailor-made for 75-inch commercial and home large screens. It solves the drawbacks of traditional vertical brackets including difficult disassembly, inflexible adjustment, troublesome maintenance and insufficient load capacity, balancing stability, convenience and safety.

Product Selling Points

✅Exclusive vertical mounting for 75-inch large screens

✅Hydraulic buffer lifting adjustment

✅Quick screen removal without detaching wall base

✅Double anti-fall safety locks

✅Concealed cable routing design

✅Thickened structure for stable load bearing

✅Wall-friendly installation with minimal wall damage

Product Advantages

1. Perfect Compatibility

Precisely matched to 75-inch LCD large screens with universal standard VESA holes for neat installation. Compatible with 70–80-inch large screens with standard hole spacing.

2. Hydraulic Lifting

No laborious manual adjustment. Nitrogen gas spring delivers smooth lifting to protect screens and interfaces, with a service life of no less than 25,000 stretching cycles.

3. Space Saving

Wall-hugging vertical design occupies little horizontal space, suitable for narrow areas such as corridors, elevator entrances and storefronts.

4. Rust-proof & Durable

2.0mm thick cold-rolled steel plate, matte black electrostatic coating and 304 stainless steel screws. Pressure-resistant and anti-aging, free of rust and abnormal noise after long-term hanging.

5. Efficient Maintenance

Front quick-release structure, no need to disconnect wires or remove wall base, ideal for scenes requiring frequent use and maintenance.

Materials & Craftsmanship

Main Frame: 2.0mm thick cold-rolled steel plate, laser cutting, integral bending forming

Hydraulic Component: Sealed nitrogen gas spring, operating temperature range -10℃~50℃, service life≥25,000 stretching cycles

Surface Treatment: Matte black electrostatic coating, salt spray test corrosion resistance≥48 hours

Anti-slip Pads: EPDM rubber pads attached to screen contact surface for shock absorption and noise reduction

Fasteners: 304 stainless steel screws + nylon expansion tubes (equipped with M8×70mm expansion bolts)

Installation Steps

1. Confirm wall type, calibrate vertical center line with a spirit level and mark drilling positions

2. Drill holes and insert expansion tubes, fix the wall base and check verticality

3. Install VESA hanging plate on the back of 75-inch screen

4. Align screen hanging plate with wall base slot; the hydraulic rod automatically supports and locks it in place

5. Tighten double safety latches to ensure anti-fall effect

6. Arrange wires inside cable trough and adjust angle and height

7. Check stability; it can be put into normal use without looseness

Applicable Scenarios

FAQ

Q1: Is it only suitable for 75-inch screens?

A: It is mainly designed for 75-inch vertical LCD screens, compatible with 70-80-inch large screens with standard VESA hole spacing. We can verify the matching model for you.

Q2: Will vertical installation lead to unstable center of gravity?

A: Special vertical structure, hydraulic balance, multi-point stress bearing and double latches ensure stable installation without side tilting when installed in standard operation.

Q3: Is installation complicated?

A: Complete drawings and full accessories are provided, an ordinary adult can complete installation independently. Professional installation is recommended for special walls.

Q4: Do I need to dismantle the wall base for maintenance?

A: No, the quick-release structure allows separate removal of the screen, making front operation more convenient.

Q5: Does it support angle adjustment?

A: It supports hydraulic fine-tuning of height and front-back tilt adjustment to relieve screen glare and optimize viewing angles.
