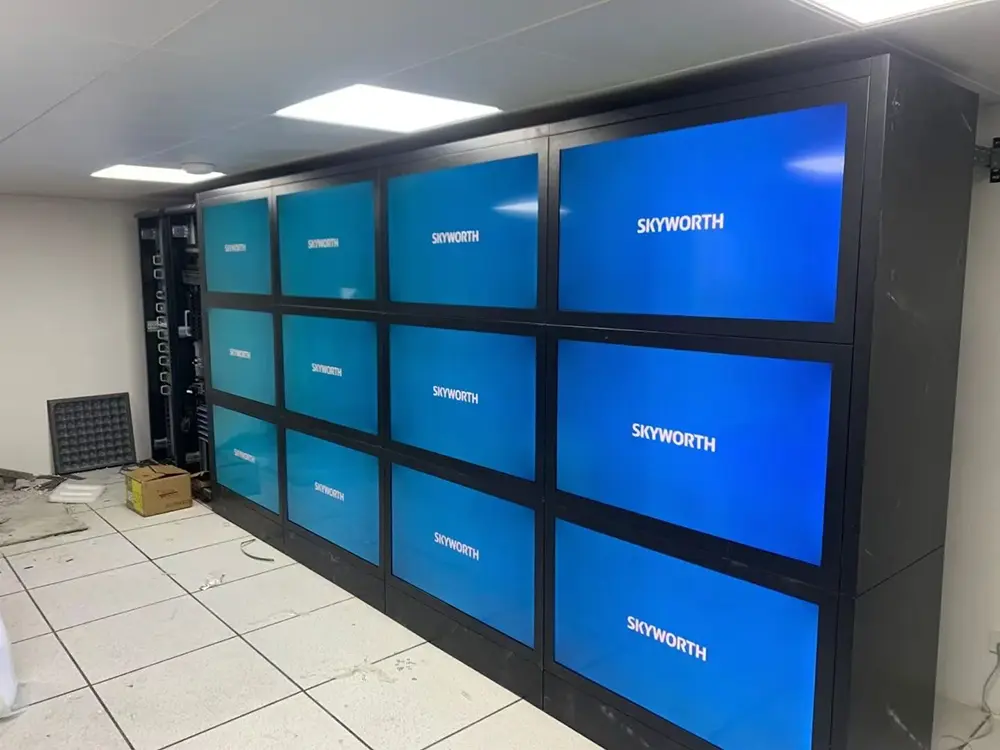

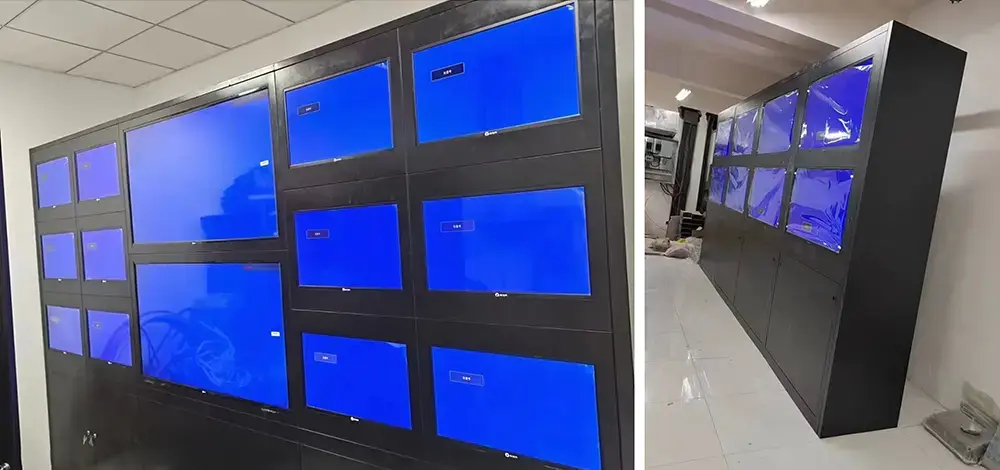

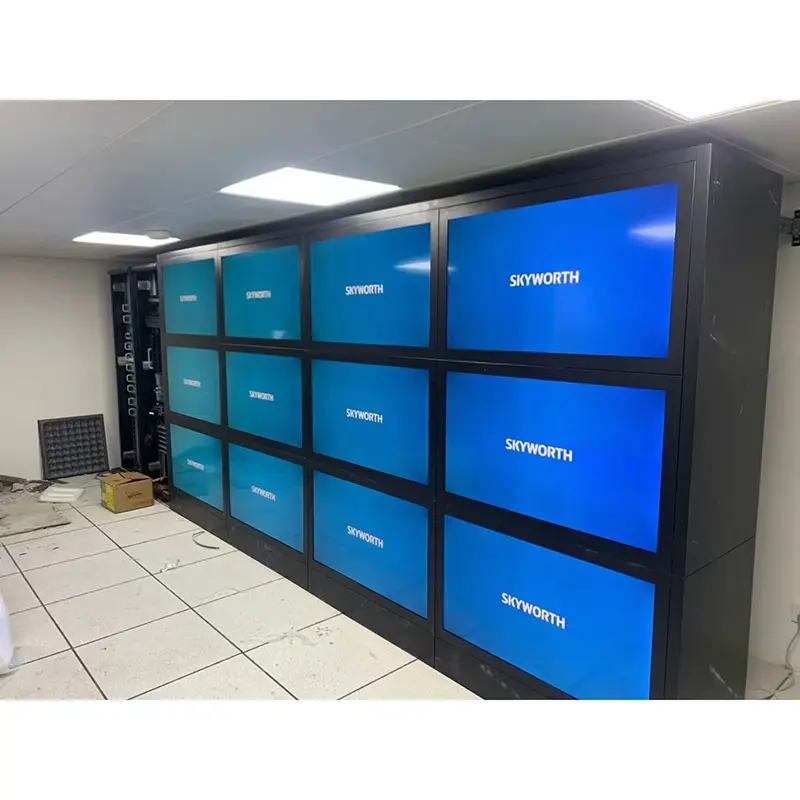

CCTV TV Wall Cabinet

CCTV TV wall cabinet is a display equipment installation solution specially designed for security monitoring centers, command centers, data centers and intelligent control rooms, mainly used to install LCD video walls, monitors and related control equipment. Adopting a modular structure, it can be customized in size, layers and layout to meet the installation requirements of various monitoring display systems.

Made of high-quality cold-rolled steel, the cabinet is precisely processed and welded. The surface is treated with degreasing, pickling, phosphating and electrostatic spraying, providing excellent rust, corrosion and wear resistance for long-term stable use in various complex environments.

Core Features

1. Equipment Integration: Supports fixed installation of various displays (22–55 inches), NVR/DVR hosts, matrix controllers and other equipment.

2. Cable Management: Built-in cable slots, wiring holes and cable tie positions, separating strong and weak current to avoid signal interference and facilitate maintenance.

3. Heat Dissipation: Standard cooling fans and high ventilation design ensure stable long-term operation.

4. All-steel Frame: Made of high-quality cold-rolled steel, sturdy, stable and durable.

Product Advantages

CCTV TV Wall Cabinet can be customized in all-steel or steel-wood structure according to requirements. Frame-type design is convenient for installation and transportation. It meets humanized, personalized and standardized requirements with good applicability and protection performance, including shock resistance, compression resistance, dustproof, waterproof and radiation protection.

Installation Method

1. Position and drill holes: Mark and drill holes on the wall, install expansion bolts.

2. Cabinet assembly: Assemble the frame, install laminates, door panels and back panels according to drawings.

3. Cabinet fixing: Place the cabinet against the wall, level it and fix it firmly.

4. Equipment installation: Install displays, decoders, matrix and servers with reserved heat dissipation space.

5. Wiring: Connect video signals, network and power cables with proper grounding.

6. Commissioning: Power on and test all equipment.

Application Scenarios

Widely used in public security command centers, traffic control centers, smart city security platforms and other places. As the core display carrier of video monitoring systems, it centrally displays multiple monitoring images on a large video wall to form a complete security monitoring system and improve public safety and management efficiency.

FAQ

1. What material and thickness?

Made of high-quality cold-rolled steel. Key load-bearing parts (frame, side panels, face panels): 1.5 mm; door panels: 1.2 mm.

2. Which display devices does the CCTV TV wall cabinet support?

Compatible with LCD video walls, LED displays, industrial monitors, security monitors and video wall systems. Various sizes and splicing modes are supported.

3. Is installation easy?

Yes. Modular structure for simple installation, fast splicing and later expansion.

4. Is customization available?

Yes. Please provide size, color or samples for customization.

5. How to choose the right cabinet?

Consider display size, splicing quantity, installation environment, maintenance method, load-bearing and heat dissipation requirements. We provide professional solutions.

Procurement Advantages

•One-stop installation solution

•Fast prototyping and mass production

•Stable delivery and quality control

•Experience in overseas export projects

•Technical support and installation guidance

Suitable for the procurement of CCTV TV wall cabinets and LCD video wall projects, as well as partnerships on security display system engineering projects.
