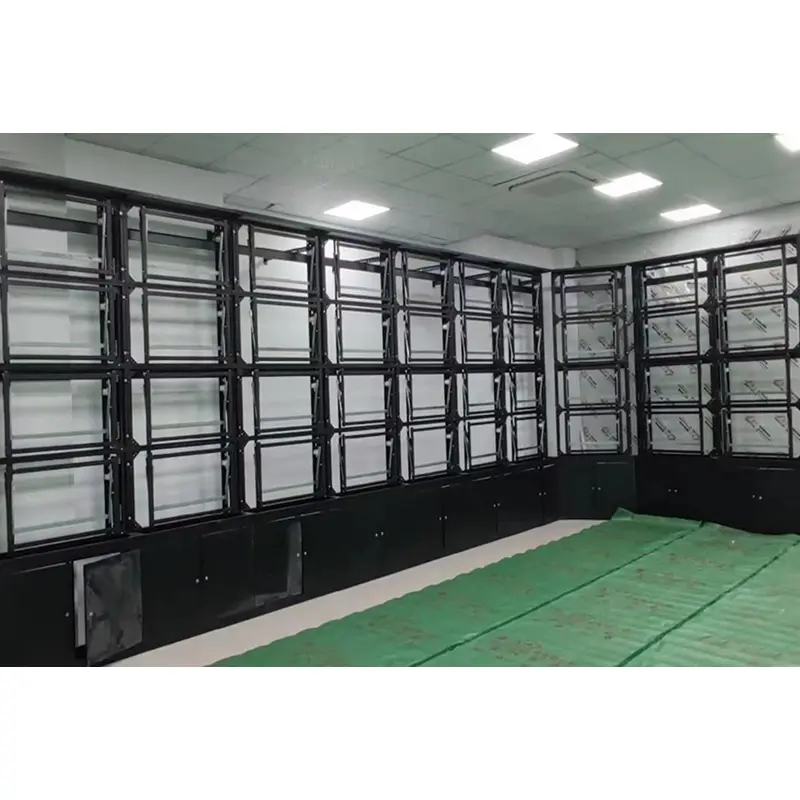

55-inch Video Wall Bracket

The 55-inch video wall bracket is a precision installation system engineered to achieve perfect visual alignment. 55-inch narrow-bezel display units are highly sensitive to seam uniformity; standard mounts often suffer from spring-back after adjustment or positional shifts due to temperature fluctuations. This product features a dual-nut anti-loosening fine-adjustment mechanism, offering an adjustment range of ±10mm (vertical and horizontal) and ±6mm (depth); it provides tactile, precise control and ensures zero drift once locked. It is ideally suited for high-end commercial applications demanding seamless visuals, such as TV studio backdrops, large-scale digital art displays in museums, and flagship store feature walls.

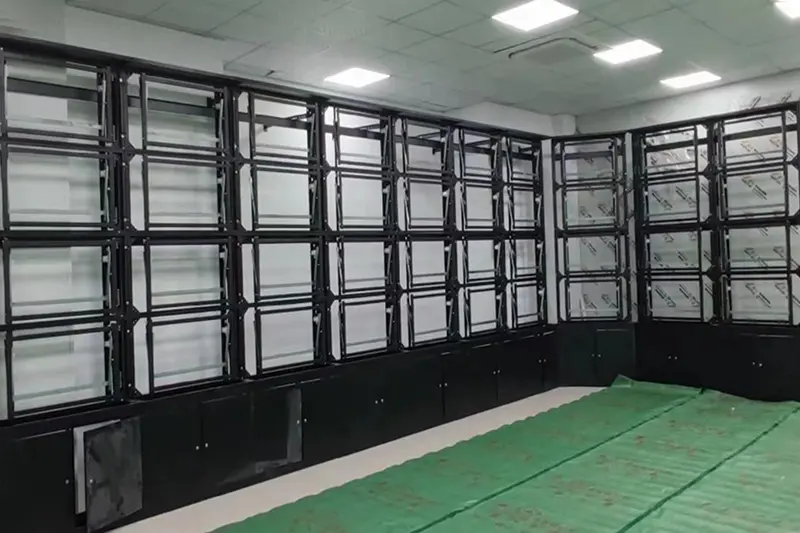

Why a Special Bracket Is Required for 55-inch Video Walls

Product Advantages

✅Heavy-load compatible: Thickened profiles and reinforcing ribs deliver 30% higher single-point load capacity than 49-inch brackets, free of settlement after long-term use.

✅Stable splicing gaps: Independent locking for each panel paired with lock nuts prevents displacement caused by temperature shifts and minor vibrations.

✅High installation tolerance: Horizontal bubble levels pre-installed on cross beams and guide slopes on hook entrances allow single-person mounting of heavy 55-inch panels with ease.

✅Wide compatibility: Supports VESA 600×400mm and 800×400mm hole patterns, compatible with mainstream brands of 55-inch video wall panels.

✅Superior weather resistance: Outdoor-grade powder coating for semi-outdoor deployment.

Material & Structural Specifications

Key Comparison with 46-inch & 49-inch Brackets

Core Features

1. Heavy-Duty Pressure-Resistant Frame Customized for Heavy 55-inch Panels

The main beam adopts 2.8mm cold-rolled steel plate, and the column cross-section is widened to 60×40mm (30% larger sectional area than the 49-inch bracket). Designed for a single-panel load of≥80kg while actual panel weight only ranges from 25 to 35kg, it provides sufficient safety margin without bending, torsion or settlement during long-term hanging.

2. High-Precision 6-Way Fine-Tuning with Anti-Rebound Locking

Vertical and horizontal adjustment range reaches±10mm, front-back adjustment±6mm, superior to 46-inch and 49-inch models. The double anti-loose nut structure delivers clear adjustment feedback and zero drift after locking. Splicing gaps remain stable long-term even with temperature fluctuations from -10℃to 50℃or minor vibrations.

3. Anti-Torsion Auxiliary Hooks to Eliminate Large Panel Torsion

Tall 55-inch panels tend to twist horizontally under their own weight, resulting in uneven gap heights. Two lateral stoppers are installed on the back of each panel to completely prevent torsion, ensuring height difference at both ends of splicing gaps≤0.3mm.

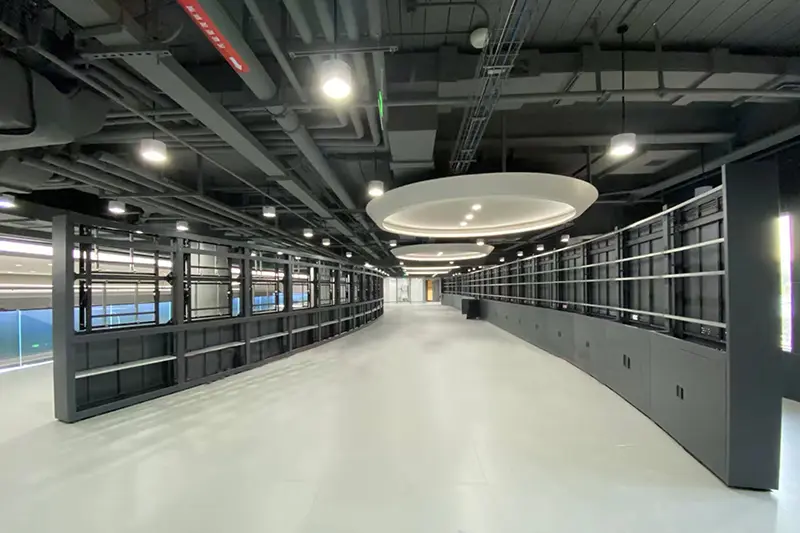

4. Dual Mounting Modes: Wall-Mounted & Floor-Standing

•Wall-mounted: For concrete and solid brick walls, secured with M12 expansion bolts (larger than M10 bolts used for 46/49-inch brackets)

•Floor-standing: Equipped with optional heavy-duty adjustable foot pads and bottom cross tie rods to stop columns from outward tilting, suitable for locations where wall drilling is unavailable

5. Quick-Disassembly Maintenance Design Operable by One Person

Double-layer upper & lower hooks with guide slopes connect hanging plates and cross beams. Panels can be removed by lifting 10mm upward then pulling outward, operable by a single worker. Maintenance openings are reserved on the bracket rear for convenient cable plugging and unplugging.

6. Outdoor-Grade Weather Resistance for Semi-Outdoor Scenarios

Outdoor-grade powder coating passes a 120-hour salt spray test (vs. 72 hours for ordinary brackets). Applicable to semi-outdoor spaces such as traffic information kiosks, outdoor advertising screens and eaves of stadiums, resisting rust and fading.

Installation Steps

Two workers required; installation of a 4-panel set takes 2.5–3 hours (30% longer than smaller sizes due to heavier weight)

1. On-Site Survey

Measure wall dimensions, confirm wall type (concrete/solid brick/lightweight wall), determine layout plan (e.g. 3×3) and mark frame mounting positions.

2. Main Frame Fixing

•Wall-mounted: Install horizontal beams (one per row) secured to walls with M12 expansion bolts spaced≤600mm apart

•Floor-standing: Mount left & right columns plus bottom cross braces, fasten to ground with M12 expansion bolts and reinforce columns with diagonal braces

Calibrate horizontal and vertical levels repeatedly with a level gauge to guarantee a stable base.

3. Pre-Assemble Hanging Plates

Attach fine-tuning hanging plates to the VESA holes (600×400 or 800×400) on the rear of 55-inch panels and keep plates horizontal.

4. Mount Panels One by One

Start from the bottom row, slide panel hooks into beam slots via guide slopes and fasten bottom latches. Two workers are recommended to lift heavy 55-inch panels and align hooks.

5. Precision Fine-Tuning

Adjust 6-way jack screws (vertical/horizontal/front-back) with the supplied hex wrench, utilize anti-torsion stoppers to ensure horizontal gaps with target splicing gap≤0.5mm.

6. Cable Management

Route wires along side cable troughs, separate strong and weak current cables, and utilize rear maintenance openings for later maintenance.

7. Final Locking

Tighten double anti-loose nuts of all units and fully inspect overall stability.

8. Power-On Test

Power on and debug display effects; put into use once splicing performance meets requirements.

Application Scenarios & Recommended Configurations

FAQ

Q1: Can the horizontal level of panels be adjusted individually after mounting?

A: Yes. Each panel’s hanging plate is independently designed with vertical and horizontal fine-tuning; positions can be modified via jack screws even after installation.

Q2: Can splicing dimensions be customized according to site conditions?

A: Modular structure supports free combination of rows and columns to build video wall matrices of any size as project demands.

Q3: Will the 55-inch video wall bracket deform or become loose with long-term, daily use?

A: Premium steel materials plus protective coating prevent structural deformation and loosening under normal indoor conditions.

Q4: What tools are required for installation?

A: Impact drill / electric hammer (12mm & 14mm drill bits), level gauge, 8–10mm open-end wrench, 4mm/5mm hex wrench, tape measure, marker pen.

Q5: Can the 55-inch bracket be used interchangeably with 49-inch / 46-inch brackets?

A: Interchange is not recommended. 55-inch panels weigh 30% more and stand around 15cm taller with a different center of gravity. This bracket features targeted upgrades: thicker main beam (2.8mm vs 2.0mm), wider column cross-section (60×40mm vs 50×30mm), larger adjustment range (±10mm vs±6mm) and M12 expansion bolts (vs M10). Dedicated models are strongly advised.
