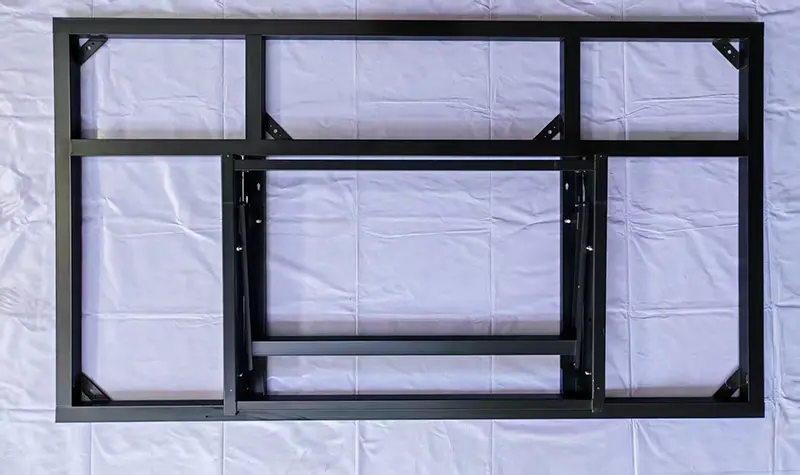

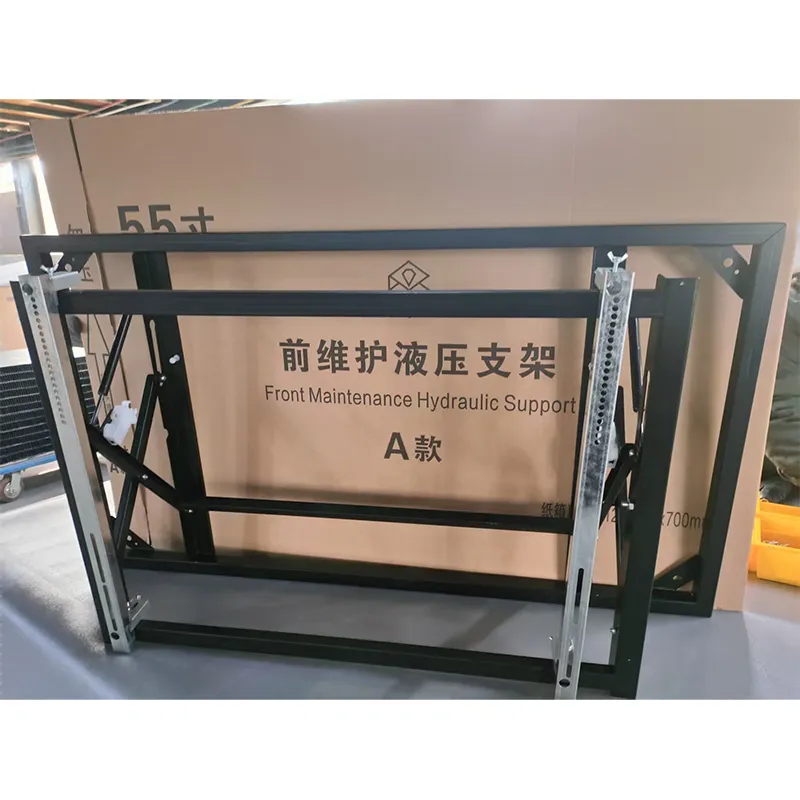

LCD 98-inch Vertical Hydraulic Bracket

The LCD 98-inch vertical hydraulic bracket is a heavy-duty vertical hydraulic wall mount tailor-made for 98-inch giant screens. It features dual hydraulic support and an widened reinforced structure, integrating stable load bearing, smooth adjustment, quick disassembly for maintenance, and anti-fall safety functions. Suitable for high-end commercial venues, meeting rooms, exhibition halls, government offices and other scenarios, it meets the demand for long-term stable vertical installation of extra-large screens.

Core Structure & Materials

1. Main Load-bearing Frame:

Thickened and widened cold-rolled steel plates plus reinforced aluminum alloy uprights, integrally stamped and reinforced for superior torsion and deformation resistance.

2. Hydraulic System:

Dual-cylinder industrial hydraulic damping components for even support, smooth lifting and silent buffering.

3. Hanging Module:

Widened VESA vertical hanging plate exclusive to 98-inch screens, compatible with mainstream giant screen hole patterns including 600×800 and 800×800.

4. Safety Structure:

Quadruple anti-drop latches, anti-slip shock-absorbing rubber pads and hydraulic self-locking mechanism, triple protection against accidental falling.

5. Fixing Fittings:

National standard thickened and lengthened expansion bolts to evenly distribute wall stress for firmer installation.

Technical Parameters

Core Features

1. Load-bearing structure for extra-large screens

Custom-designed for 98-inch screens with a thickened steel frame, boasting strong load capacity and stable performance free of deformation after long-term use.

2. Hydraulic assisted adjustment system

Built-in damping hydraulic device enables smooth tilt adjustment of the screen with effortless operation and precise positioning.

3. Vertical layout for commercial display

Vertical mounting elevates display height, ideal for advertising and wayfinding systems.

4. Modular quick-disassembly structure

The screen can be rapidly separated from the bracket to boost installation and maintenance efficiency and cut construction costs.

5. Integrated safety & cable management design

Multi-layer protective structure prevents tipping risks; concealed wiring keeps the overall setup neat and elegant.

Installation Steps

1. Verify the wall load capacity, draw vertical reference lines per vertical mounting requirements, and mark bolt hole positions accurately.

2. Drill holes and secure the main support frame with matching lengthened expansion bolts, then calibrate verticality.

3. Install the exclusive widened thickened VESA vertical hanging plate on the corresponding positions at the back of the 98-inch screen.

4. Lift the screen steadily to the bracket, align it with the support slots and hang it slowly; the hydraulic unit delivers automatic buffering and positioning.

5. Fasten all multi-layer safety latches one by one and confirm tight locking with no screen wobble.

6. Organize all cables into the vertical cable channel for concealed wiring.

7. Fine-tune tilt angle and height for optimal viewing perspective, conduct a full stability check before putting into use.

Applicable Scenarios

✅Giant screens in arrival halls of airports / high-speed railway stations

✅Background screens for large studios

✅Situation display walls for city Integrated Operation Centers (IOC)

✅Flagship stores / auto exhibition halls

✅Banquet halls of high-end hotels

FAQ

Q1: Are there special wall requirements for vertical installation of a 98-inch giant screen?

A: The wall must be a load-bearing concrete wall or solid brick wall. Hollow bricks, drywall and lightweight partition walls are strictly prohibited to guarantee load safety.

Q2: Does it support left-right rotation or horizontal fine-tuning after vertical mounting?

A: Minor horizontal alignment adjustment and front-back tilt adjustment are available to rectify installation errors and optimize viewing angles; wide-angle rotation is not supported.

Q3: Will the bracket sag or deform after long-term suspension?

A: Equipped with thickened widened steel plates, reinforced mechanical structure and hydraulic self-locking support, it will not sag, deform or loosen during long-term hanging.

Q4: What advantages does the dual-hydraulic structure have over ordinary single-hydraulic designs?

A: Synchronized dual hydraulic cylinders deliver even force distribution and smoother adjustment, avoiding unilateral sinking, stuttering or tilting, making it more suitable for heavy 98-inch screens.
